• Renold SD 16B-2-NO107 BS Duplex Chain Outer Link To Be Riveted 1 inch Pitch
  • Renold
1 2

SKU: 16B-2-SD-NO107-RENOLD

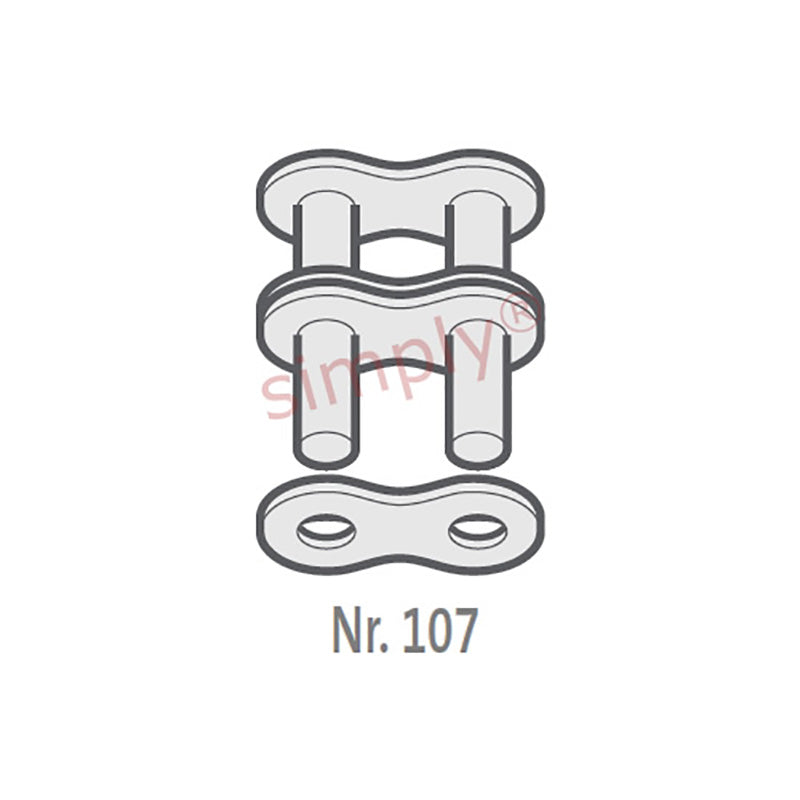

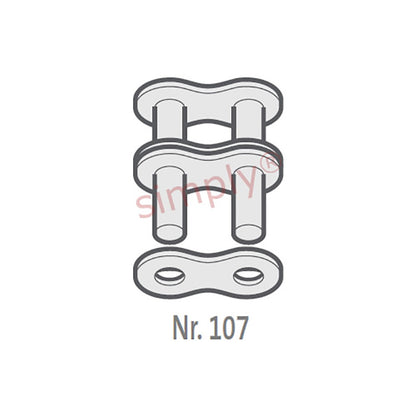

Renold SD 16B-2-NO107 BS Duplex Chain Outer Link To Be Riveted 1 inch Pitch

Renold SD 16B-2-NO107 BS Duplex Chain Outer Link To Be Riveted 1 inch Pitch
$13.79 ex VAT
$13.79 ex VAT
Sale Sold out

In stock

Price Break
2+ $9.24
5+ $8.72
10+ $8.62
29+ $8.51
49+ $8.41
75+ $8.31
100+ $7.79
200+ $7.68
250+ $7.58
500+ $7.48
1000+ $7.27

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Renold - High Quality
Pitch:
25.4mm = 1 inch
Technical
Pitch (A) 1 inch
Pitch (A) 25.4mm
Inside Width min (B) 17.02mm
Roller Diameter max (C) 15.88mm
Plate Height max (D) 21.05mm
Plate Width Inner max (E) 4mm
Plate Width Outer max (F) 3.2mm
Pin Diameter max (G) 8.2mm
Pin Length max (H2) 67.5mm
Connecting Link Extension max (J) 1.59999999999999mm
Transverse Pitch nom (K) 31.88mm
ISO606 Tensile Strength min 106000 N
Weight 0.04kg/m
