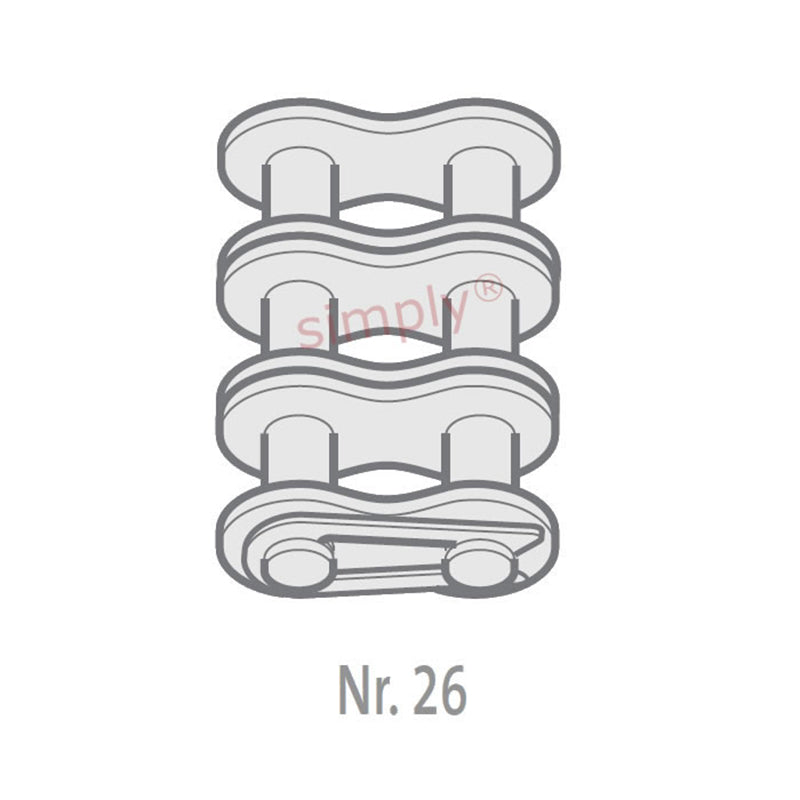

• Branded 16B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 1 inch Pitch
1 1

SKU: 16B-3-NO26-MB

Branded 16B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 1 inch Pitch

Branded 16B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 1 inch Pitch
$12.54 ex VAT
$12.54 ex VAT
Sale Sold out

Equivalent to: 16B-3-CL

In stock

Price Break
2+ $8.40
5+ $7.93
10+ $7.83
29+ $7.74
49+ $7.65
75+ $7.55
100+ $7.08
200+ $6.98
250+ $6.89
500+ $6.80
1000+ $6.61

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Pitch:
25.4mm = 1 inch
Technical
Pitch (A) 1 inch
Pitch (A) 25.4mm
Inside Width min (B) 17.02mm
Roller Diameter max (C) 15.88mm
Plate Height max (D) 21.05mm
Plate Width Inner max (E) 4mm
Plate Width Outer max (F) 3.2mm
Pin Diameter max (G) 8.28mm
Pin Length max (H3) 103.2mm
Connecting Link Extension max (J) 3.60000000000001mm
ISO606 Tensile Strength min 173000 N
Weight 0.113kg/m
