• Renold SD 16B-3-NO107 BS Triplex Chain Outer Link To Be Riveted 1 inch Pitch
  • Renold
1 2

SKU: 16B-3-SD-NO107-RENOLD

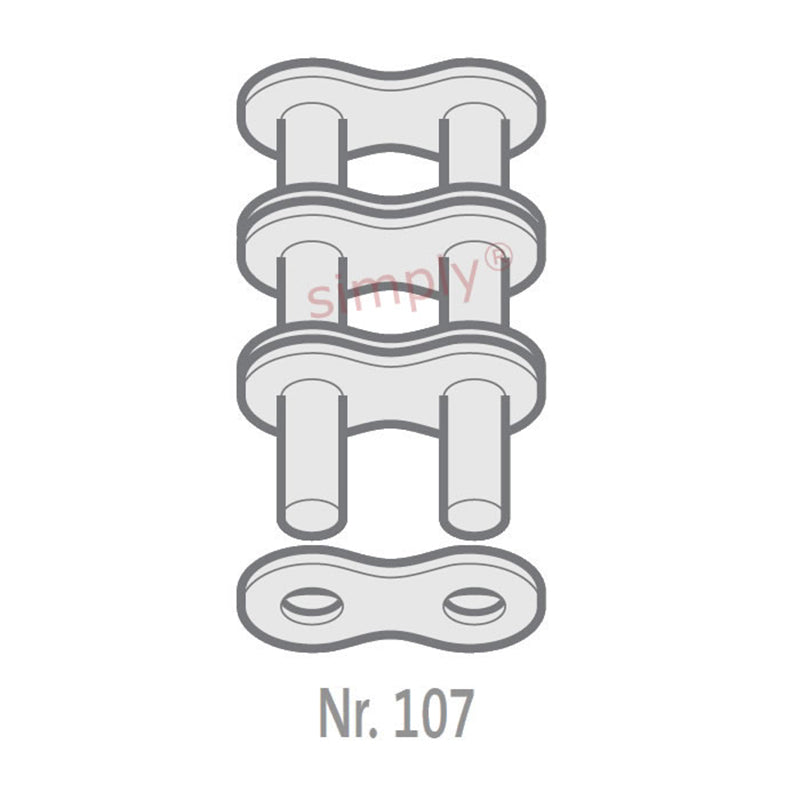

Renold SD 16B-3-NO107 BS Triplex Chain Outer Link To Be Riveted 1 inch Pitch

Renold SD 16B-3-NO107 BS Triplex Chain Outer Link To Be Riveted 1 inch Pitch
$19.39 ex VAT
$19.39 ex VAT
Sale Sold out

In stock

Price Break
2+ $12.98
5+ $12.25
10+ $12.11
29+ $11.96
49+ $11.82
75+ $11.67
100+ $10.94
200+ $10.80
250+ $10.65
500+ $10.50
1000+ $10.21

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Renold - High Quality
Pitch:
25.4mm = 1 inch
Technical
Pitch (A) 1 inch
Pitch (A) 25.4mm
Inside Width min (B) 17.02mm
Roller Diameter max (C) 15.88mm
Plate Height max (D) 21.05mm
Plate Width Inner max (E) 4mm
Plate Width Outer max (F) 3.2mm
Pin Diameter max (G) 8.28mm
Pin Length max (H1) 103.2mm
Connecting Link Extension max (J) 3.60000000000001mm
ISO606 Tensile Strength min 173000 N
Weight 0.11kg/m
