SKU: 16B-3-SYN-NO26-RENOLD
Renold Synergy 16B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 1 inch Pitch
Renold Synergy 16B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 1 inch Pitch
Regular price
$102.15
ex VAT
Regular price
Sale price
$102.15
ex VAT
In stock
Price Break
2+
$68.42
5+
$64.58
10+
$63.81
29+
$63.04
49+
$62.27
75+
$61.50
100+
$57.66
200+
$56.89
250+
$56.12
500+
$55.35
1000+
$53.81
Quantity
Couldn't load pickup availability
Share this product
Description
Description

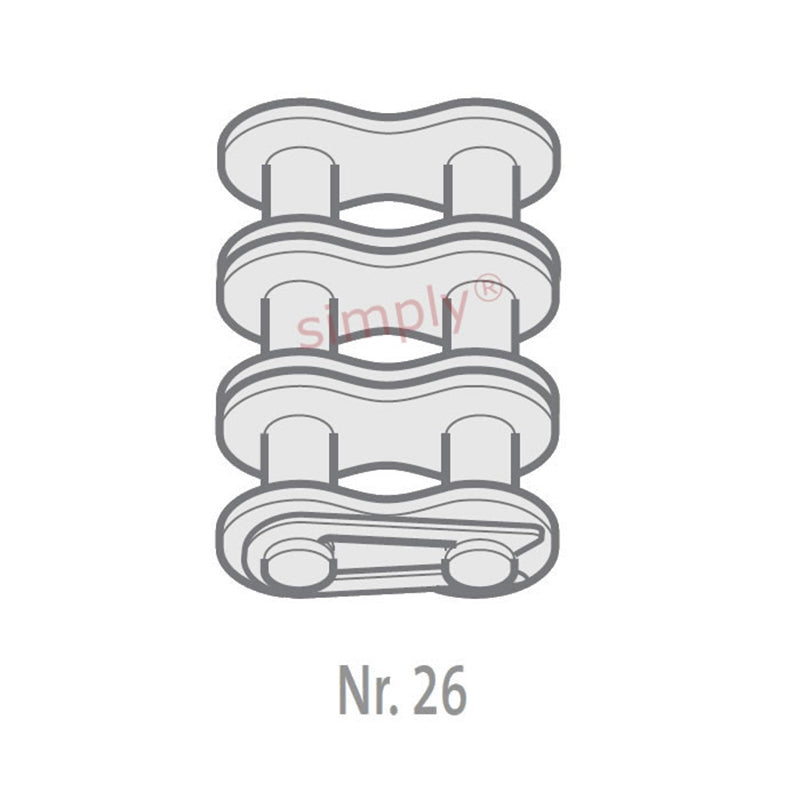

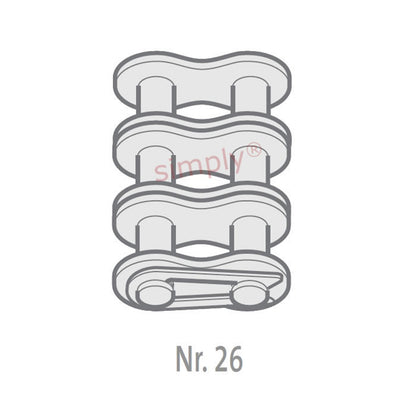

| Renold No. 26 European (BS) Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 17.02mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 21.08mm |
| Plate Width Inner max (E) | 4.12mm |
| Plate Width Outer max (F) | 3.1mm |
| Pin Diameter max (G) | 8.28mm |
| Pin Length max (H2) | 98.6mm |
| Connecting Link Extension max (J) | 2.2mm |
| Transverse Pitch nom (K) | 31.88mm |
| ISO606 Tensile Strength min | 160000 N |
| Weight | 0.046kg/m |
