SKU: 16T5/390

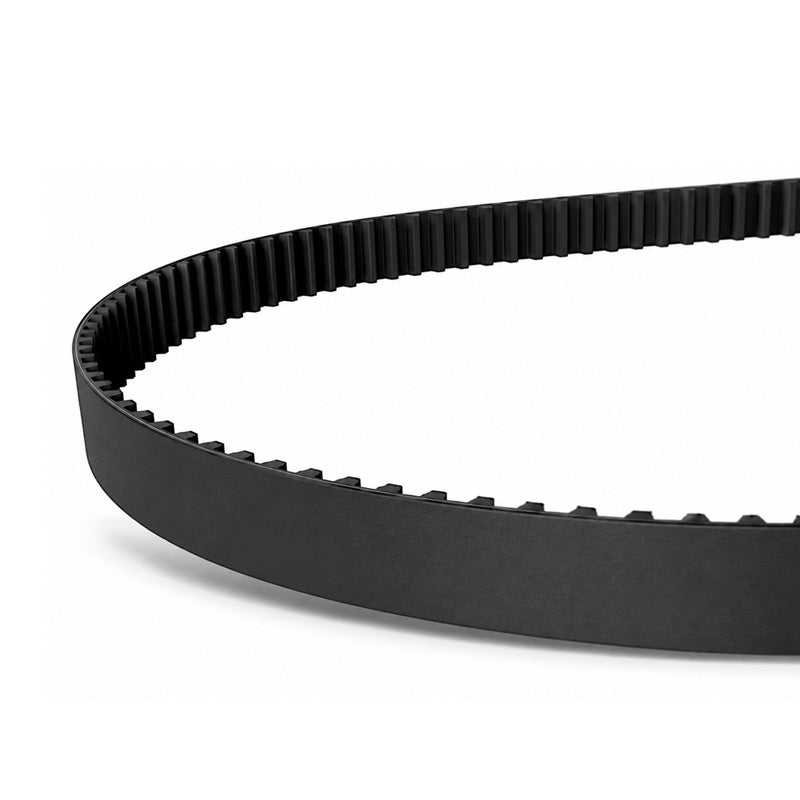

16T5/390 ContiTech Synchroflex Toothed Belt 16mm Wide 5mm Pitch 78 Teeth
- Regular price
- $16.24 ex VAT
- Sale price
- $16.24
- Regular price
-
Quantity Price Breaks
16T5/390 ContiTech Synchroflex Toothed Belt 16mm Wide 5mm Pitch 78 Teeth
- Regular price
- $16.24 ex VAT
- Sale price
- $16.24
- Regular price
-
Description
Synchronous Drive Belts: Power transmission belts have become a valuable element of synchronous transmission throughout the entire field of drive technology. They enable purpose-made solutions to be realized effectively and economically.
Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers.
Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance.
Technical
| No Teeth | = | 78 |
| Width | = | 16mm |
| Tooth Pitch t | = | 5mm |
| Belt Length | = | 390mm |
| Belt Thickness h< | = | sub> |
| s< | = | /sub> |
| = | 2.2mm | |
| Tooth Height h< | = | sub> |
| t< | = | /sub> |
| = | 1.2mm | |
| Flank Angle | = | 40 deg |
| Tension member loadings | = | 570 Fadm(N) |
| Belt weight | = | 0.043kg/m |
