SKU: 16x22x4_UNP1_NAK

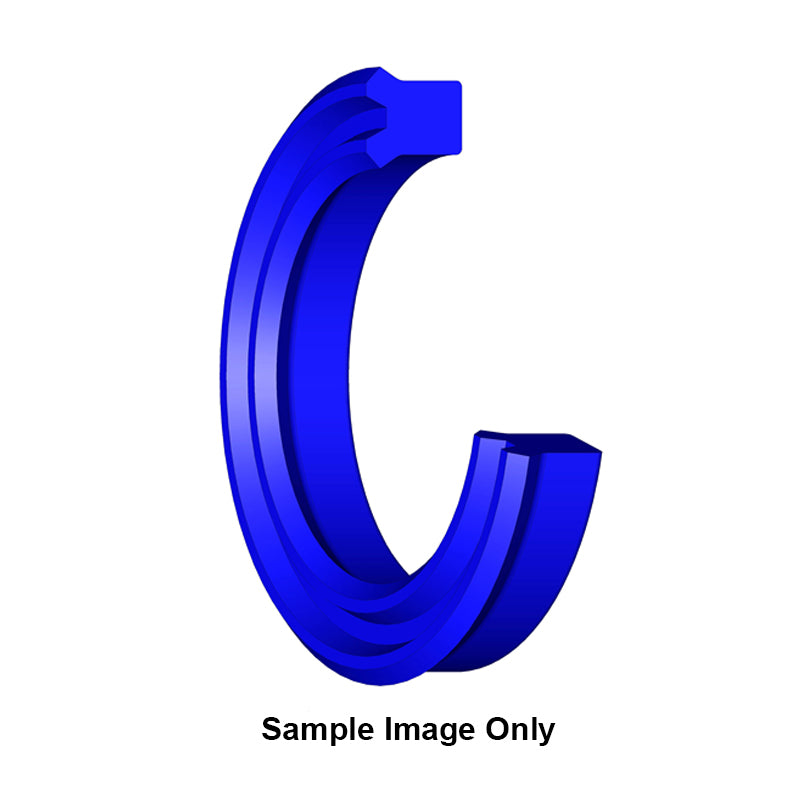

NAK 16x22x4mm UNP1 Polyurethane Symmetrical Seal - Allow 7-10 Days
NAK 16x22x4mm UNP1 Polyurethane Symmetrical Seal - Allow 7-10 Days
Regular price
$4.24
ex VAT
Regular price
Sale price
$4.24
ex VAT
In stock
Price Break
10+
$2.84
19+
$2.68
29+
$2.65
39+
$2.62
49+
$2.59
74+
$2.55
99+
$2.39
199+
$2.36
249+
$2.33
499+
$2.30
999+
$2.23
Quantity
Couldn't load pickup availability
Description
Description
NAK UNP1 Symmetrical Seals: UNP1 symmetrical seals are robust, single-acting hydraulic seals with a refined symmetrical lip design, specifically engineered for high-performance sealing in both piston and rod applications. Their enhanced geometry ensures consistent sealing performance while allowing for flexible installation in either position, making them a reliable choice for modern hydraulic systems.
Benefits: Enhanced sealing efficiency, flexible installation, universal compatibility with piston and rod configurations
- Brand / Quality:
- NAK - High Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 22mm
- Length:
- 4mm
- Material:
- Polyurethane
- Style:
- UNP
- Colour:
- Blue

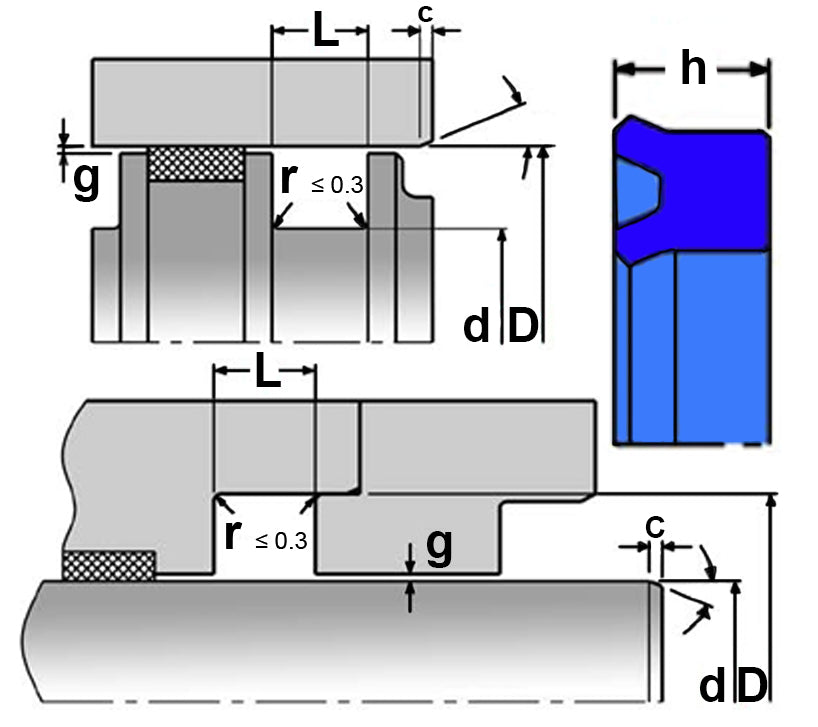

Technical
Technical
| d | 16mm |
|---|---|
| D | 22mm |
| L | 4.7mm |
| h | 4mm |
| C | 3mm |
| Inside Diameter Tolerance | h10 |
| Outside Diameter Tolerance | H9 |
| Length Tolerance | 0.2mm |
| Pressure (max) | 40 Mpa |
| Sliding Speed (max) | 0.5 m/s |
| Temperature | -40 Deg C to +100 Deg C |
| Colour | Blue |
