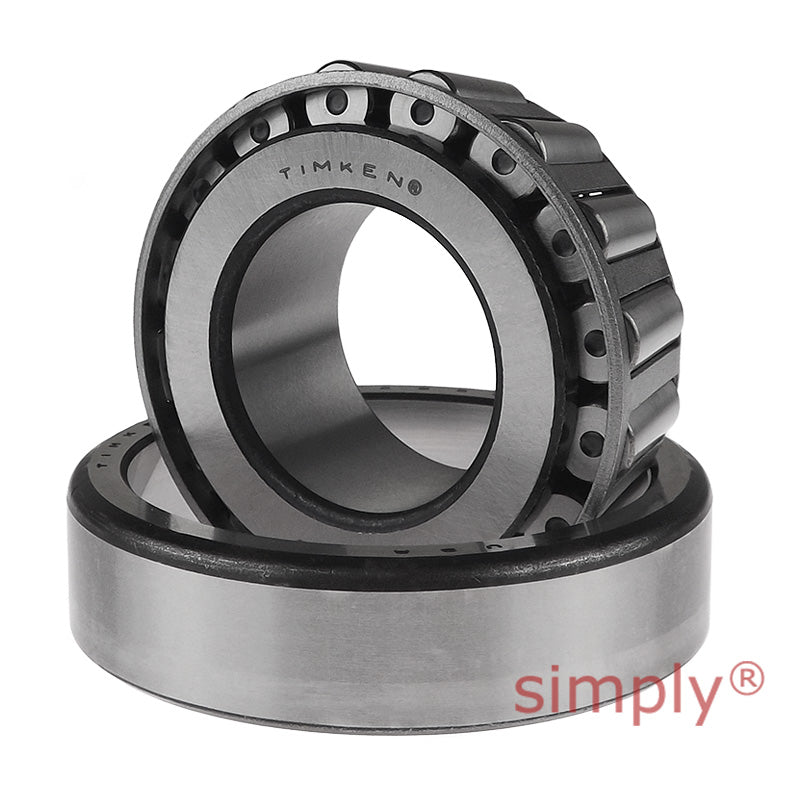

• Timken 17098/17244A TS Single-Row Taper Roller Bearing 0.9835x2.4402x0.63 inch
  • Timken
1 2

SKU: 17098/17244A-TIM

Timken 17098/17244A TS Single-Row Taper Roller Bearing 0.9835x2.4402x0.63 inch

Timken 17098/17244A TS Single-Row Taper Roller Bearing 0.9835x2.4402x0.63 inch
$138.37 ex VAT
$138.37 ex VAT
Sale Sold out

In stock

Price Break
10+ $92.69
20+ $87.48
30+ $86.44
40+ $85.40
50+ $84.36
75+ $83.31
100+ $78.11
200+ $77.07
250+ $76.02
500+ $74.98
1000+ $72.90

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Timken - High Quality
Inside Diameter:
24.98mm = 0.984 (63/64) inch
Outside Diameter:
61.98mm = 2.44 inch
Width:
16mm = 0.63 inch
Technical
d 24.981mm = 0.9835 inch
D 62mm = 2.4402 inch
T 16.002mm = 0.63 inch
Dynamic (1) C1 40000N
Factors (5) e 0.38
Factors (5) Y 1.57
Dynamic (2) C90 10400N
Dynamic (2) Ca90 6800N
Factors (5) K 1.53
Static C0 44100N
Bearing B 16.566mm = 0.6522 inch
Bearing C 14.288mm = 0.5625 inch
Bearing a(3) -3.6mm = -0.14 inch
Shaft max shaft fillet radius R(4) 1.5mm = 0.06 inch
Shaft backing shoulder diameter da 30.5mm = 1.2 inch
Shaft backing shoulder diameter db 33mm = 1.3 inch
Housing backing shoulder diameter r(4) 1.5mm = 0.06 inch
Housing backing shoulder diameter Da 57mm = 2.24 inch
Housing backing shoulder diameter Db 54mm = 2.13 inch
Cage Aa 0.3mm = 0.01 inch
Cage Ab 1.8mm = 0.07 inch
G1 11.8
G2 7.49
Cg 0.0579
