• 170X3SPA 170mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)
  • 170X3SPA 170mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)
1 2

SKU: 170SPA3-MB

170X3SPA 170mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)

170X3SPA 170mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)
$41.67 ex VAT
$41.67 ex VAT
Sale Sold out

In stock

Price Break
3+ $27.91
5+ $26.34
9+ $26.03
19+ $25.71
49+ $25.40
74+ $25.09
99+ $23.52
199+ $23.21
249+ $22.89
499+ $22.58
999+ $21.95

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
3
Outside Diameter:
176.2mm
Pitch Diameter:
170mm
Max Bore:
60mm

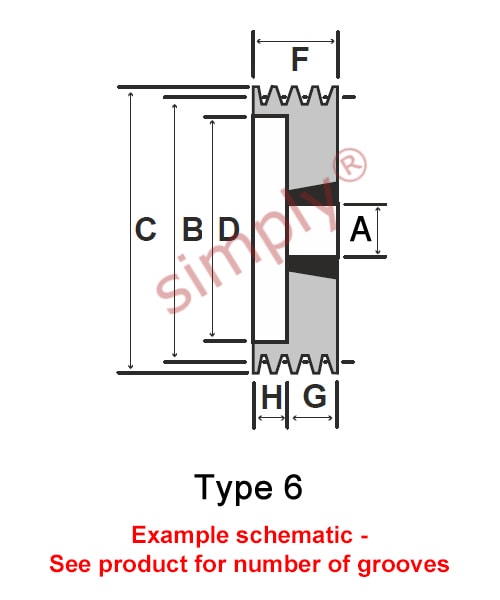

Technical
Number of Grooves 3
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=2517+tapered+locking+bush">2517 Click Here</a>
Pitch Diameter B 170mm
Overall Outer Diameter C 176.2mm
Max Bore A 60mm
Overall Sheave Depth F 50mm
Bush Seat Length G 45mm
Inner Recess Diameter D 135mm
Inner Recess Length H 5mm
