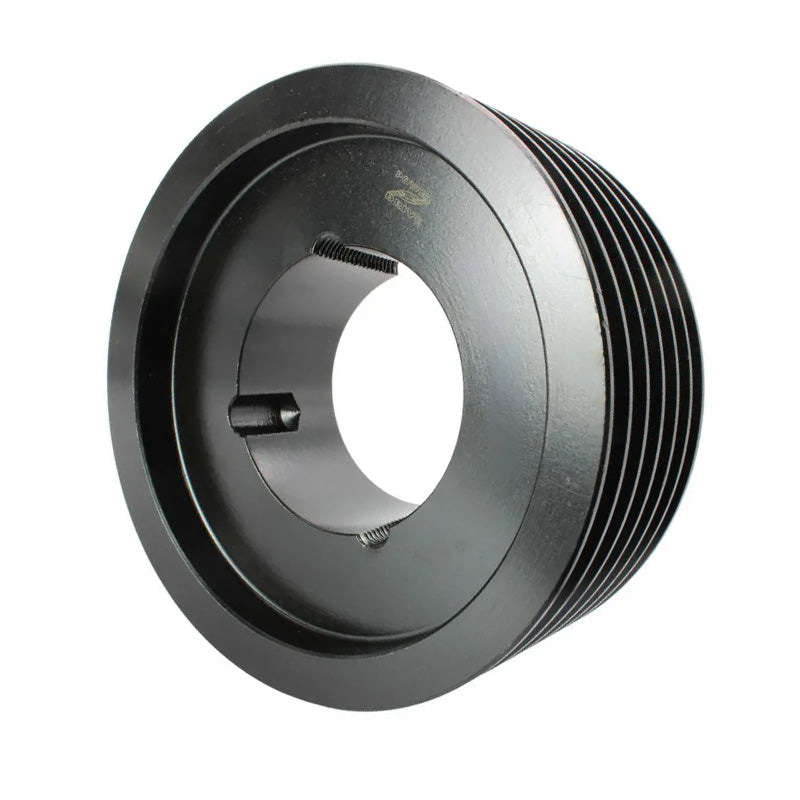

• 170X6SPB 170mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)
1 1

SKU: 170SPB6-MB

170X6SPB 170mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)

170X6SPB 170mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)
$79.12 ex VAT
$79.12 ex VAT
Sale Sold out

In stock

Price Break
3+ $53.00
5+ $50.02
9+ $49.42
19+ $48.83
49+ $48.23
74+ $47.64
99+ $44.66
199+ $44.07
249+ $43.47
499+ $42.87
999+ $41.68

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
6
Outside Diameter:
177.6mm
Pitch Diameter:
170mm
Max Bore:
75mm
Technical
Number of Grooves 6
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3020+tapered+locking+bush">3020 Click Here</a>
Pitch Diameter B 170mm
Overall Outer Diameter C 177.6mm
Max Bore A 75mm
Overall Sheave Depth F 120mm
Bush Seat Length G 51mm
Inner Recess Diameter D 127mm
Inner Recess Length H 34.5mm
