SKU: 1726203-2RS-EU

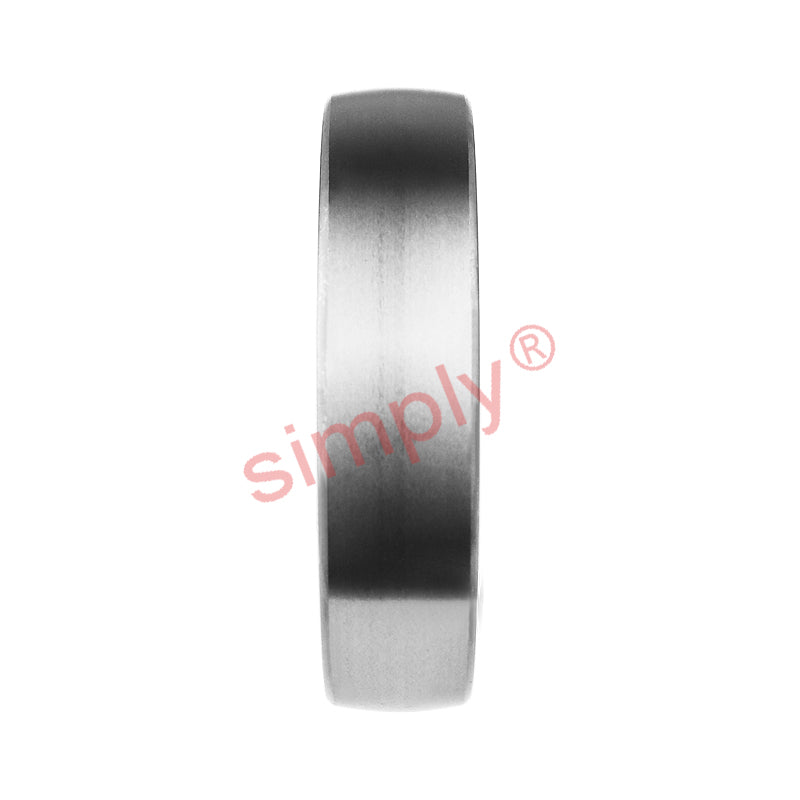

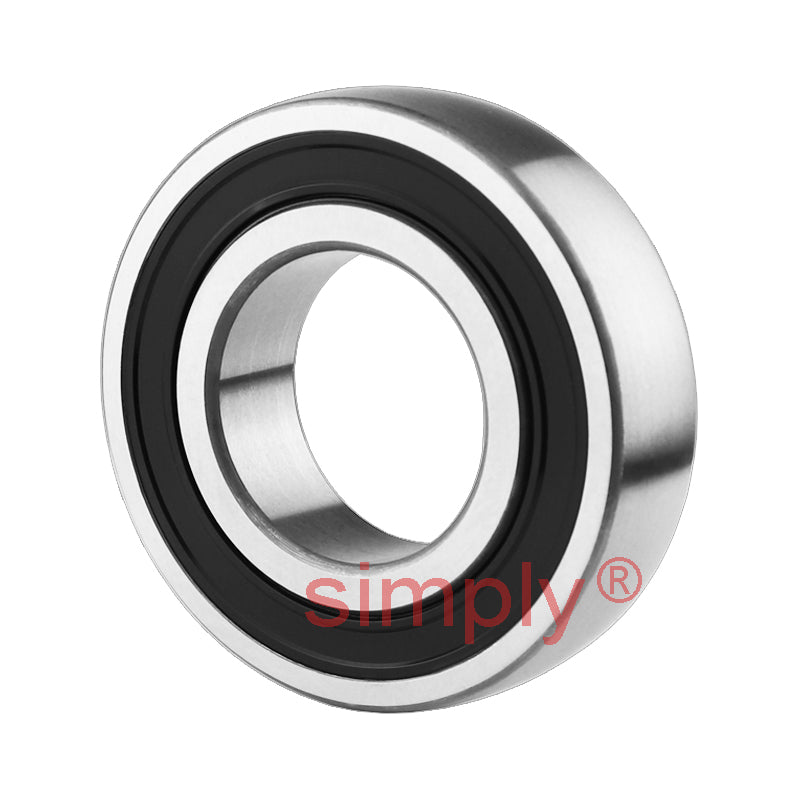

Budget 17262032RS Spherical Outside Dia Deep Groove Ball Bearing 17x40x12mm
Budget 17262032RS Spherical Outside Dia Deep Groove Ball Bearing 17x40x12mm
Regular price
$5.57
ex VAT
Regular price
Sale price
$5.57
ex VAT
Equivalent to: 203NPPB 203NPPU CS203 1726203-2RS1 CB203
In stock
Price Break
10+
$3.73
20+
$3.52
30+
$3.47
40+
$3.43
50+
$3.39
75+
$3.35
100+
$3.14
200+
$3.10
250+
$3.06
500+
$3.01
1000+
$2.93
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
172 Series Rubber Sealed Deep Groove Ball Bearings with Spherical Outer Race: Commonly used in conjunction with pressed steel bearing housings or cast iron types these rubber sealed bearings are characterized by their spherical outside diameter. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Width:
- 12mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| d | 17mm |
|---|---|
| D | 40mm |
| B | 12mm |
| d1 | 24.2mm |
| r1r2 | 0.6mm |
| Dynamic load Cr | 4.75 kN |
| Static load Cor | 9.56 kN |
| Fatigue load limit Pu | 0.2 kN |
| Max speed | 12000 rpm |
| Weight | 0.056 kg |
