SKU: 1726210-2RS1-SKF

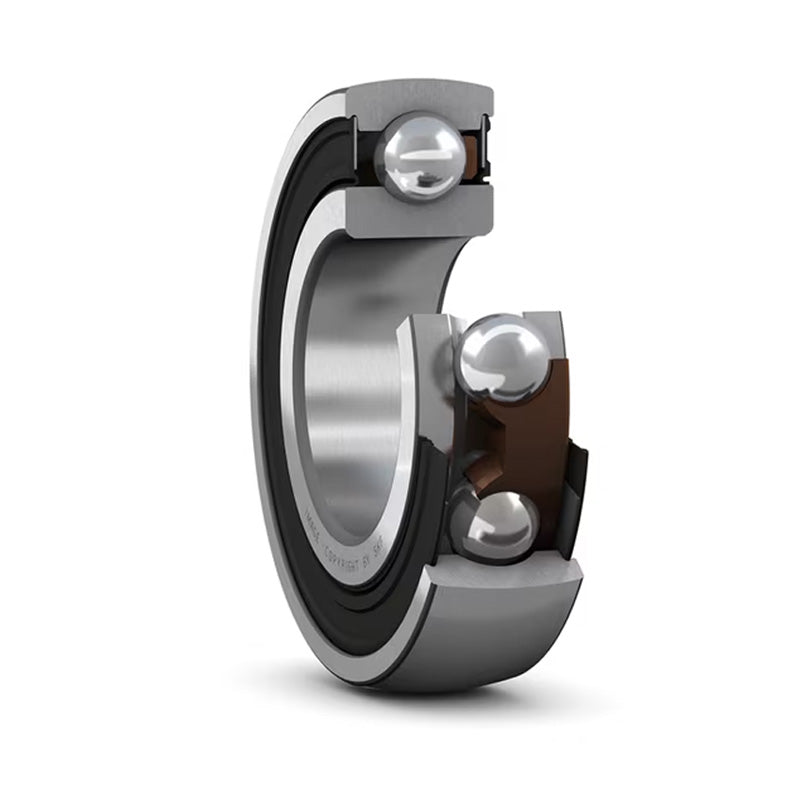

SKF 17262102RS1 Spherical Outside Dia Deep Groove Ball Bearing 50x90x20mm
SKF 17262102RS1 Spherical Outside Dia Deep Groove Ball Bearing 50x90x20mm
Regular price
$49.39
ex VAT
Regular price
Sale price
$49.39
ex VAT
In stock
Price Break
10+
$33.08
20+
$31.22
30+
$30.85
40+
$30.48
50+
$30.11
75+
$29.73
100+
$27.88
200+
$27.50
250+
$27.13
500+
$26.76
1000+
$26.02
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
172 Series Rubber Sealed Deep Groove Ball Bearings with Spherical Outer Race: Commonly used in conjunction with pressed steel bearing housings or cast iron types these rubber sealed bearings are characterized by their spherical outside diameter. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 90mm
- Width:
- 20mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| d | 50mm |
|---|---|
| D | 90mm |
| B | 20mm |
| d1 | 62.5mm |
| r1r2 min | 1.1mm |
| Static load Cr | 23.2 kN |
| Dynamic load Cor | 35.1 kN |
| Fatigue load limit Pu | 0.98 kN |
| Limiting speed | 4800 rpm |
| Weight | 0.41 kg |
