SKU: 1726306-2RS1-SKF

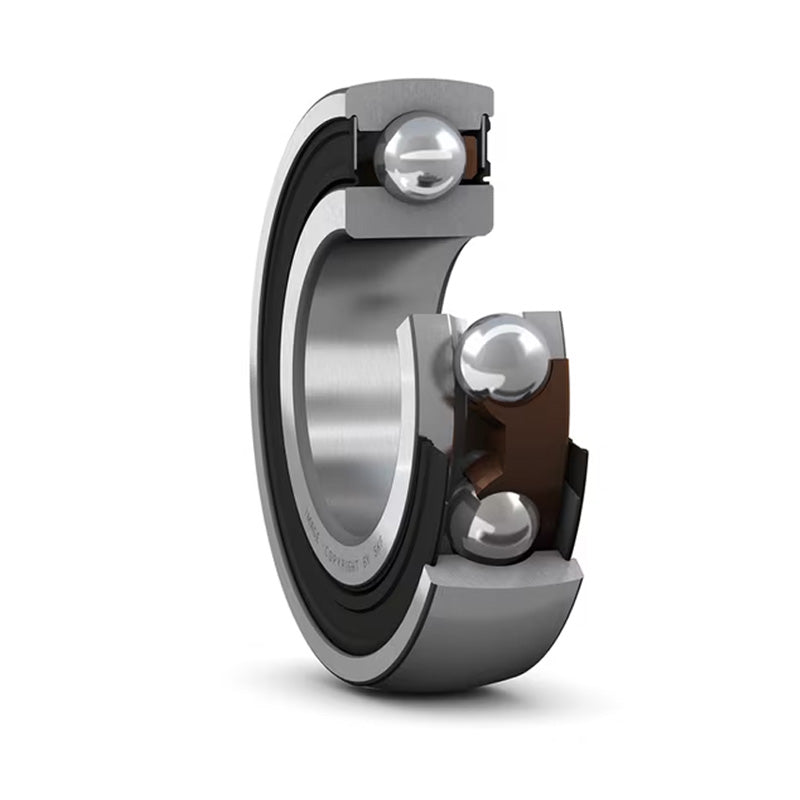

SKF 17263062RS1 Spherical Outside Dia Deep Groove Ball Bearing 30x72x19mm
SKF 17263062RS1 Spherical Outside Dia Deep Groove Ball Bearing 30x72x19mm
Regular price
$41.10
ex VAT
Regular price
Sale price
$41.10
ex VAT
In stock
Price Break
10+
$27.53
20+
$25.98
30+
$25.67
40+
$25.36
50+
$25.05
75+
$24.74
100+
$23.20
200+
$22.89
250+
$22.58
500+
$22.27
1000+
$21.65
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
172 Series Rubber Sealed Deep Groove Ball Bearings with Spherical Outer Race: Commonly used in conjunction with pressed steel bearing housings or cast iron types these rubber sealed bearings are characterized by their spherical outside diameter. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 72mm
- Width:
- 19mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| d | 30mm |
|---|---|
| D | 72mm |
| B | 19mm |
| d1 | 44.6mm |
| r1r2 min | 1.1mm |
| Static load Cr | 16 kN |
| Dynamic load Cor | 28.1 kN |
| Fatigue load limit Pu | 0.67 kN |
| Limiting speed | 6300 rpm |
| Weight | 0.3 kg |
