SKU: 1726307-2RS1-SKF

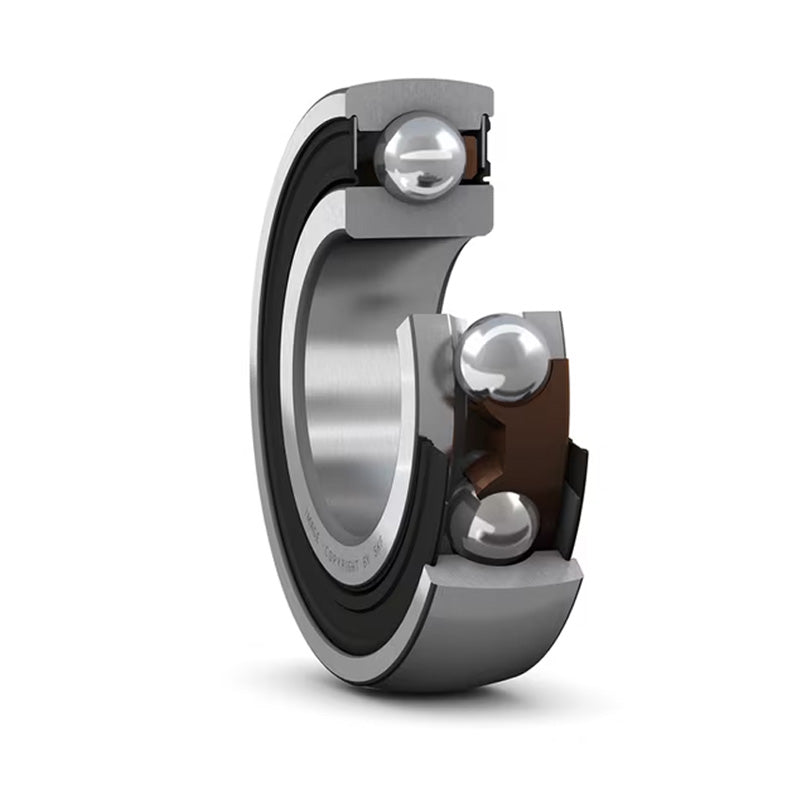

SKF 17263072RS1 Spherical Outside Dia Deep Groove Ball Bearing 35x80x21mm
SKF 17263072RS1 Spherical Outside Dia Deep Groove Ball Bearing 35x80x21mm
Regular price
$49.20
ex VAT
Regular price
Sale price
$49.20
ex VAT
In stock
Price Break
10+
$32.96
20+
$31.11
30+
$30.74
40+
$30.36
50+
$29.99
75+
$29.62
100+
$27.77
200+
$27.40
250+
$27.03
500+
$26.66
1000+
$25.92
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
172 Series Rubber Sealed Deep Groove Ball Bearings with Spherical Outer Race: Commonly used in conjunction with pressed steel bearing housings or cast iron types these rubber sealed bearings are characterized by their spherical outside diameter. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 80mm
- Width:
- 21mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| d | 35mm |
|---|---|
| D | 80mm |
| B | 21mm |
| d1 | 49.6mm |
| r1r2 min | 1.5mm |
| Static load Cr | 19 kN |
| Dynamic load Cor | 33.2 kN |
| Fatigue load limit Pu | 0.815 kN |
| Limiting speed | 6000 rpm |
| Weight | 0.4 kg |
