SKU: 1726310-2RS1-SKF

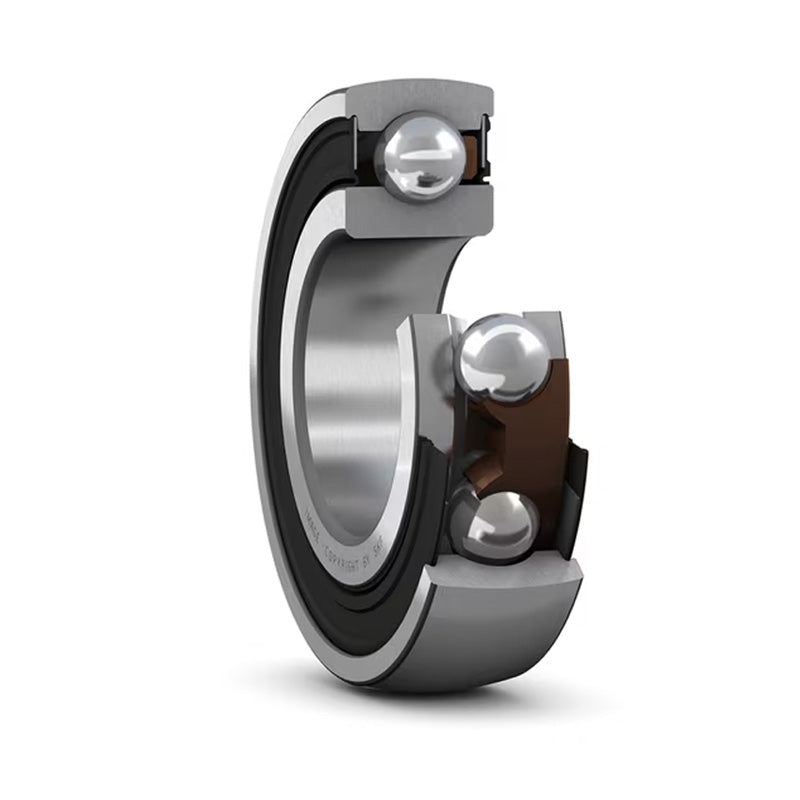

SKF 17263102RS1 Spherical Outside Dia Deep Groove Ball Bearing 50x110x27mm
SKF 17263102RS1 Spherical Outside Dia Deep Groove Ball Bearing 50x110x27mm
Regular price
$78.66
ex VAT
Regular price
Sale price
$78.66
ex VAT
In stock
Price Break
10+
$52.69
20+
$49.73
30+
$49.14
40+
$48.55
50+
$47.96
75+
$47.36
100+
$44.40
200+
$43.81
250+
$43.22
500+
$42.63
1000+
$41.44
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
172 Series Rubber Sealed Deep Groove Ball Bearings with Spherical Outer Race: Commonly used in conjunction with pressed steel bearing housings or cast iron types these rubber sealed bearings are characterized by their spherical outside diameter. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 110mm
- Width:
- 27mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| d | 50mm |
|---|---|
| D | 110mm |
| B | 27mm |
| d1 | 68.7mm |
| r1r2 min | 2mm |
| Static load Cr | 38 kN |
| Dynamic load Cor | 61.8 kN |
| Fatigue load limit Pu | 1.6 kN |
| Limiting speed | 4300 rpm |
| Weight | 0.95 kg |
