• 180X5SPA 180mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
  • 180X5SPA 180mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
1 2

SKU: 180SPA5-MB

180X5SPA 180mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)

180X5SPA 180mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
$56.67 ex VAT
$56.67 ex VAT
Sale Sold out

In stock

Price Break
3+ $37.96
5+ $35.82
9+ $35.40
19+ $34.97
49+ $34.54
74+ $34.12
99+ $31.99
199+ $31.56
249+ $31.13
499+ $30.71
999+ $29.85

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
5
Outside Diameter:
186.2mm
Pitch Diameter:
180mm
Max Bore:
75mm

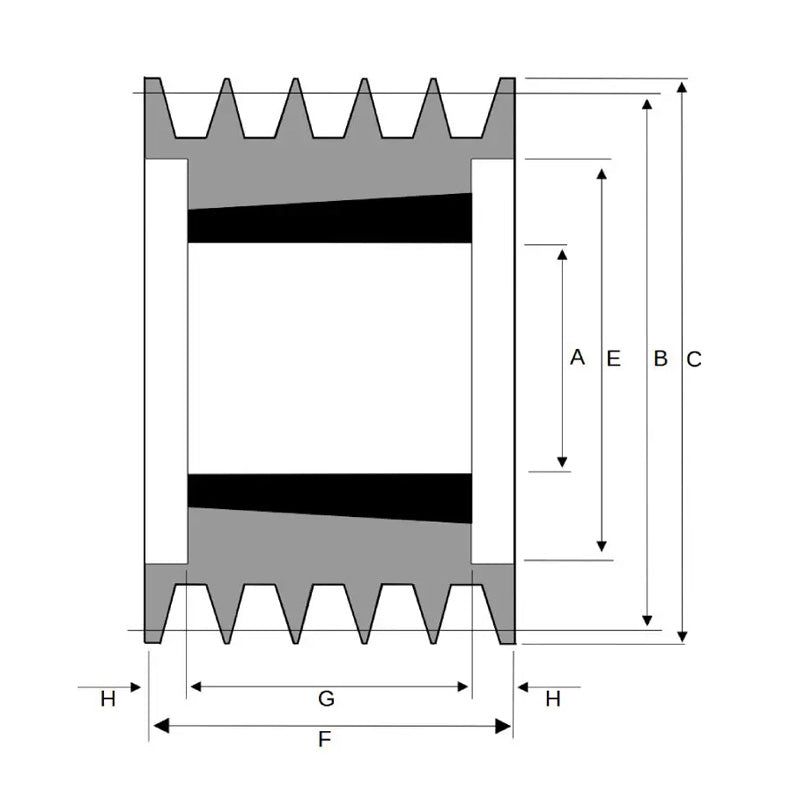

Technical
Number of Grooves 5
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3020+tapered+locking+bush">3020 Click Here</a>
Pitch Diameter B 180mm
Overall Outer Diameter C 186.2mm
Max Bore A 75mm
Overall Sheave Depth F 80mm
Bush Seat Length G 51mm
Inner Recess Diameter D 146mm
Inner Recess Length H 14.5mm
