• 180X4SPB 180mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
  • 180X4SPB 180mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
1 2

SKU: 180SPB4-MB

180X4SPB 180mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)

180X4SPB 180mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
$66.20 ex VAT
$66.20 ex VAT
Sale Sold out

In stock

Price Break
3+ $44.34
5+ $41.85
9+ $41.35
19+ $40.85
49+ $40.36
74+ $39.86
99+ $37.37
199+ $36.87
249+ $36.37
499+ $35.87
999+ $34.88

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
4
Outside Diameter:
187.6mm
Pitch Diameter:
180mm
Max Bore:
60mm

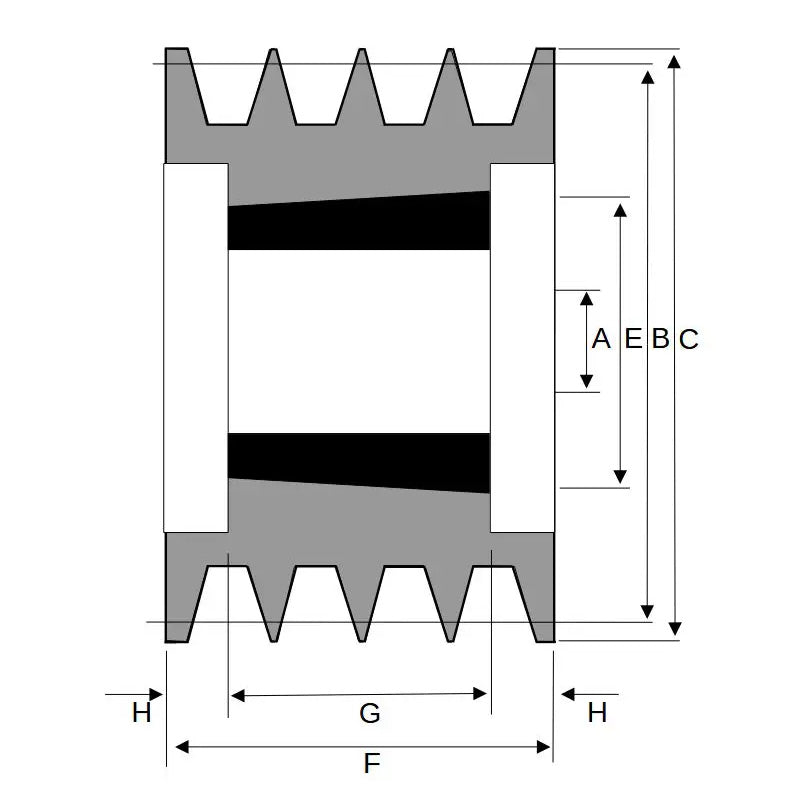

Technical
Number of Grooves 4
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=2517+tapered+locking+bush">2517 Click Here</a>
Pitch Diameter B 180mm
Overall Outer Diameter C 187.6mm
Max Bore A 60mm
Overall Sheave Depth F 82mm
Bush Seat Length G 45mm
Inner Recess Diameter D 137mm
Inner Recess Length H 18.5mm
