• 180X5SPB 180mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
  • 180X5SPB 180mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
1 2

SKU: 180SPB5-MB

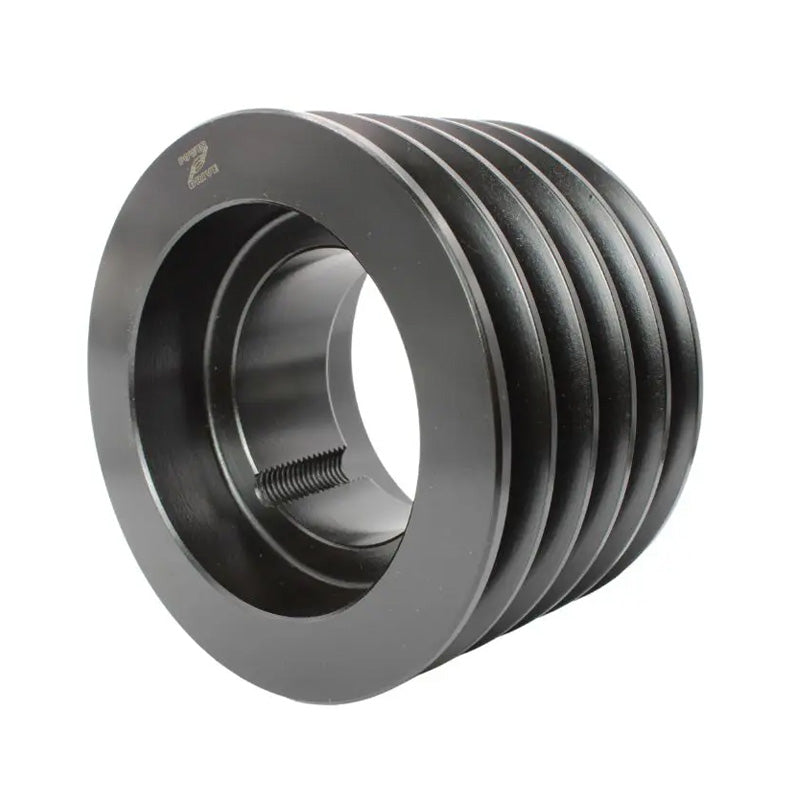

180X5SPB 180mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)

180X5SPB 180mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
$75.28 ex VAT
$75.28 ex VAT
Sale Sold out

In stock

Price Break
3+ $50.42
5+ $47.59
9+ $47.02
19+ $46.46
49+ $45.89
74+ $45.32
99+ $42.49
199+ $41.93
249+ $41.36
499+ $40.79
999+ $39.66

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
5
Outside Diameter:
187.6mm
Pitch Diameter:
180mm
Max Bore:
75mm

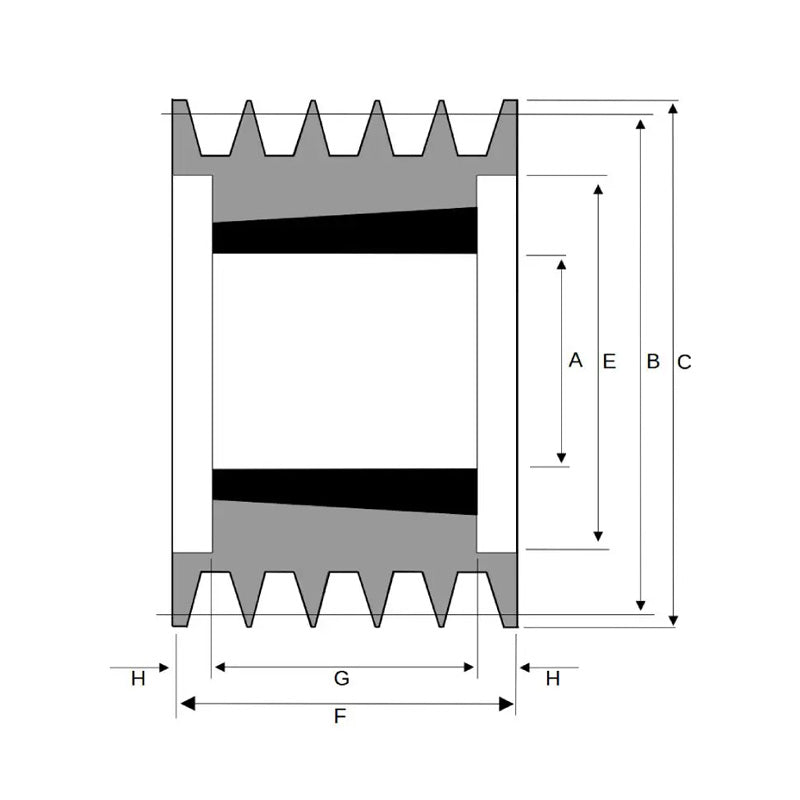

Technical
Number of Grooves 5
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3020+tapered+locking+bush">3020 Click Here</a>
Pitch Diameter B 180mm
Overall Outer Diameter C 187.6mm
Max Bore A 75mm
Overall Sheave Depth F 101mm
Bush Seat Length G 51mm
Inner Recess Diameter D 137mm
Inner Recess Length H 25mm
