SKU: 188XL-037-94

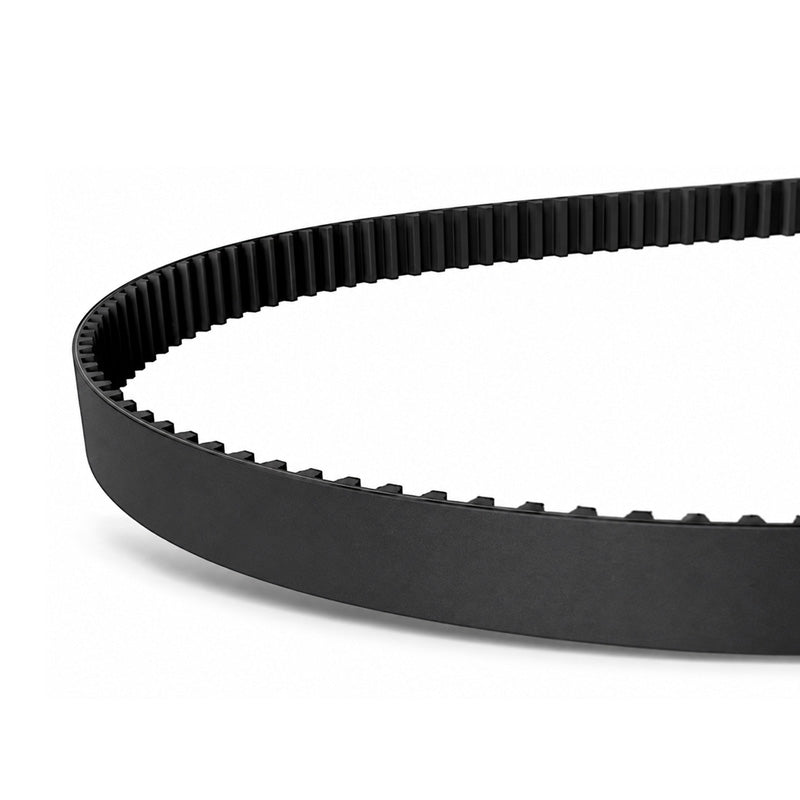

188XL037 Major Brand Synchronous Toothed Belt 0.38 inch Wide 18.8 inch Length 94 Teeth
- Regular price
- $6.29 ex VAT
- Sale price
- $6.29
- Regular price
-
In stock
Quantity Price Breaks
3
$5.60
5
$5.28
10
$5.22
15
$5.16
20
$5.09
30
$5.03
40
$4.72
50
$4.65
60
$4.59
75
$4.53
100
$4.40
SKU:
188XL-037-94
188XL037 Major Brand Synchronous Toothed Belt 0.38 inch Wide 18.8 inch Length 94 Teeth
- Regular price
- $6.29 ex VAT
- Sale price
- $6.29
- Regular price
-
Description
|
Synchronous Drive Belts: Power transmission belts have become a valuable element of synchronous
transmission throughout the entire field of drive technology. They enable
purpose-made solutions to be realized effectively and economically. Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers. Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance. |
Technical
| Belt width | = | 0.38 inch = 9.53mm |
| Pitch length | = | 18.8 inch = 477.52mm |
| Number of teeth | = | 94 |
| Tooth pitch t | = | 0.2 inch |
| Flank angle f | = | 50 degrees |
| Tooth height h< | = | sub> |
| t< | = | /sub> |
| = | 0.05 inch | |
| Pitch zone u | = | 0.01 inch |
