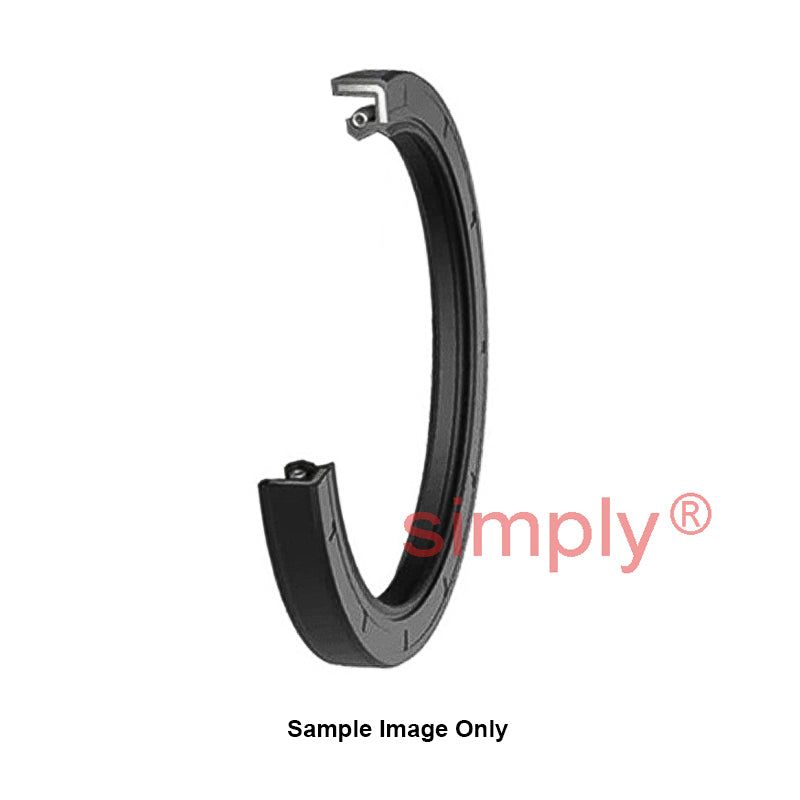

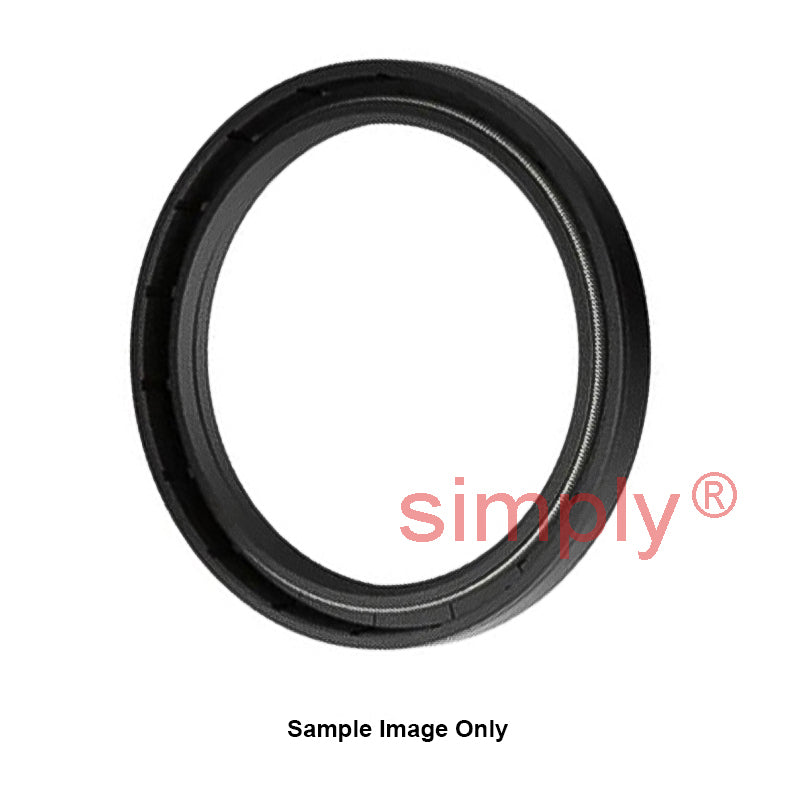

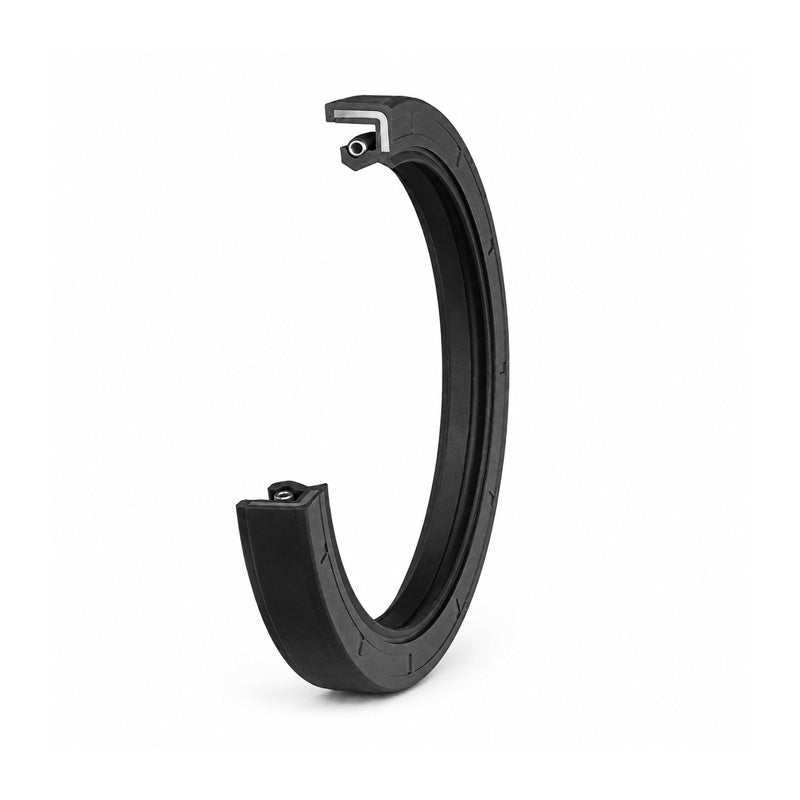

NAK 19.05x28.58x6.35/6.85mm HIGH PRESSURE Nitrile Rubber Double Lip Rotary Shaft Oil Seal with Extra Internal Sealing Profile with Garter Spring TCN11
- Regular price
- $9.12 ex VAT
- Sale price
- $9.12
- Regular price
-
Quantity Price Breaks
NAK 19.05x28.58x6.35/6.85mm HIGH PRESSURE Nitrile Rubber Double Lip Rotary Shaft Oil Seal with Extra Internal Sealing Profile with Garter Spring TCN11
- Regular price
- $9.12 ex VAT
- Sale price
- $9.12
- Regular price
-
Description
NAK N1..11 Nitrile Pressure Resistant Oil Seals: Oil seals are used in a variety of different applications in which a rotating shaft is lubricated by oil or grease. They are engineered to facilitate the smooth operation of your equipment, serving as a barrier to prevent the leakage of oils and greases while also keeping foreign substances from entering. TCN1, TCN11 and TDN1 type seals feature a special design of the short flex section and special material and structural designs making these oil seals best suited for high-pressure applications. These types feature a sealing nitrile rubber lip on the inside diameter as well as an external dust lip. These oil seal types feature a garter spring which allows some give to prevent a build-up of friction. (Seals under 5mm width may not always feature a spring.)
Benefits: Excellent wear resistance, good running properties, high resistance to chemicals and petroleum-based fuels including petrol, diesel and LPG.
Technical
| --- | = | Dimensions |
| Shaft Size (not inside diameter) d | = | 19.05mm |
| Outside Diameter (D) | = | 28.58mm |
| Width (b) | = | 6.35mm |
| Width 2 (b1) | = | 6.85mm |
| = | --- | |
| Specifications | = | Avg. Pressure |
| 3.5 bar | = | Max. Pressure |
| 7 bar | = | Max. Velocity |
| 9 m/s | = | Max PV |
| 10 bar*m/s | = | --- |
| Material | = | Material |
| Nitrile Rubber | = | Spring Material |
| Carbon Steel | = | |
| Colour | = | Black |
| --- | = | Weights |
| Weight | = | 0.01 kg |
