SKU: 190SPA6-MB

190X6SPA 190mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)

190X6SPA 190mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)
$129.67 ex VAT
$129.67 ex VAT
Sale Sold out

In stock

Price Break
3+ $86.85
5+ $81.98
9+ $81.00
19+ $80.02
49+ $79.05
74+ $78.07
99+ $73.19
199+ $72.22
249+ $71.24
499+ $70.26
999+ $68.31

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
6
Outside Diameter:
195.5mm
Pitch Diameter:
190mm
Max Bore:
75mm

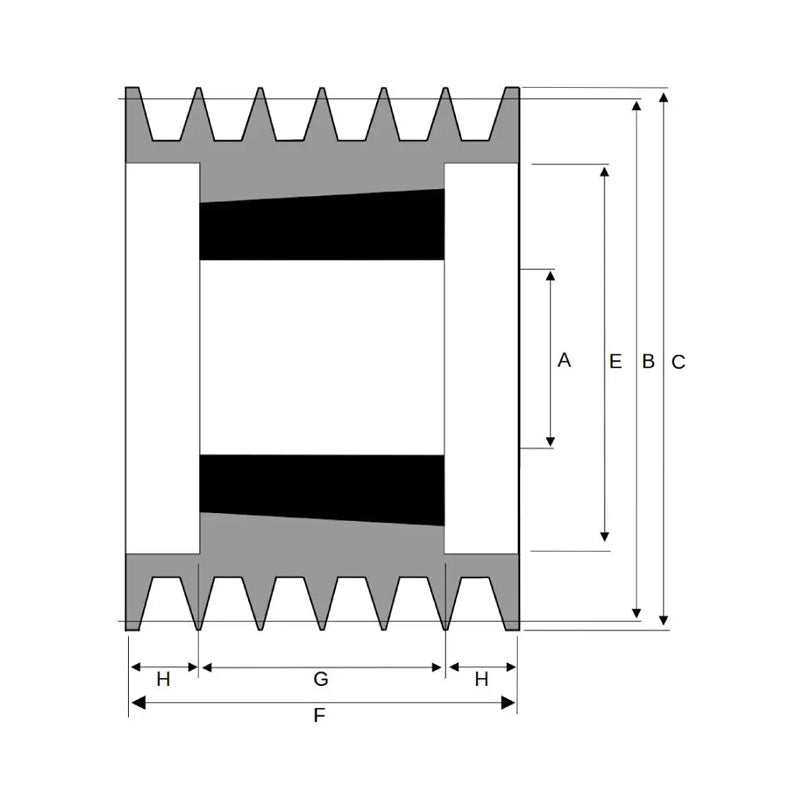

Technical
Number of Grooves 6
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3020+tapered+locking+bush">3020 Click Here</a>
Pitch Diameter B 190mm
Overall Outer Diameter C 195.5mm
Max Bore A 75mm
Outer Hub Diameter E mm
Overall Sheave Depth F 95mm
Bush Seat Length G 52mm
Inner Recess Length H 21.5mm
