• 190X8SPB 190mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 8 Grooves (Bush not Incl.)
  • 190X8SPB 190mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 8 Grooves (Bush not Incl.)
1 2

SKU: 190SPB8-MB

190X8SPB 190mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 8 Grooves (Bush not Incl.)

190X8SPB 190mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 8 Grooves (Bush not Incl.)
$126.43 ex VAT
$126.43 ex VAT
Sale Sold out

In stock

Price Break
3+ $84.68
5+ $79.92
9+ $78.97
19+ $78.02
49+ $77.07
74+ $76.12
99+ $71.36
199+ $70.41
249+ $69.46
499+ $68.51
999+ $66.60

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
8
Outside Diameter:
197.6mm
Pitch Diameter:
190mm
Max Bore:
75mm

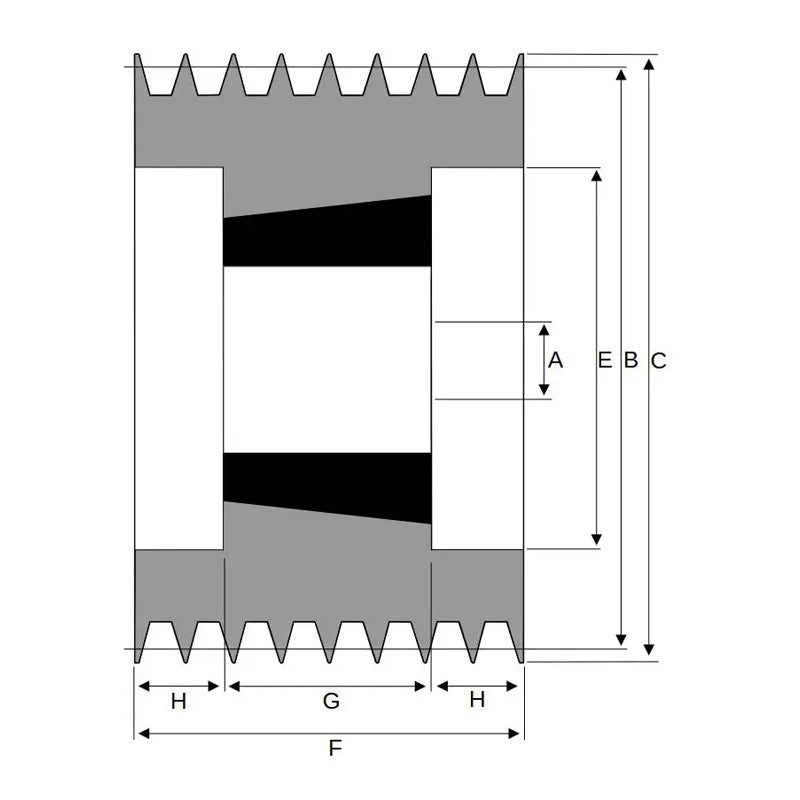

Technical
Number of Grooves 8
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3030+tapered+locking+bush">3030 Click Here</a>
Pitch Diameter B 190mm
Overall Outer Diameter C 197.6mm
Max Bore A 75mm
Overall Sheave Depth F 158mm
Bush Seat Length G 76mm
Inner Recess Diameter D 147mm
Inner Recess Length H 41mm
