• 190X2SPZ 190mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 2 Grooves (Bush not Incl.)
1 1

SKU: 190SPZ2-MB

190X2SPZ 190mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 2 Grooves (Bush not Incl.)

190X2SPZ 190mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 2 Grooves (Bush not Incl.)
$33.30 ex VAT
$33.30 ex VAT
Sale Sold out

In stock

Price Break
3+ $22.30
5+ $21.05
9+ $20.80
19+ $20.55
49+ $20.30
74+ $20.05
99+ $18.80
199+ $18.55
249+ $18.29
499+ $18.04
999+ $17.54

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
2
Outside Diameter:
94.6mm
Pitch Diameter:
190mm
Max Bore:
50mm

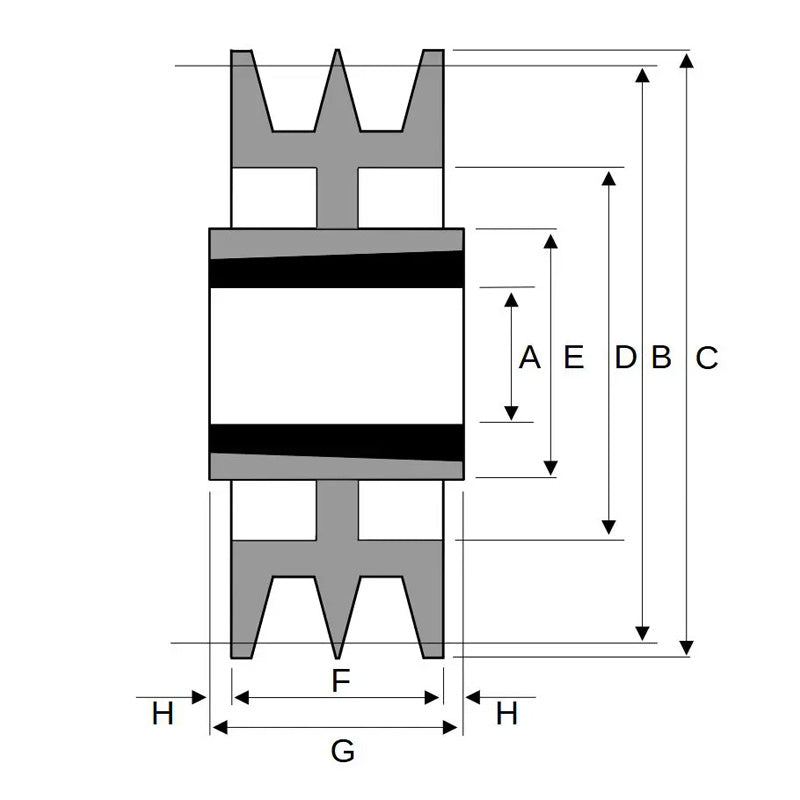

Technical
Number of Grooves 2
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=2012+tapered+locking+bush">2012 Click Here</a>
Pitch Diameter B 190mm
Overall Outer Diameter C 94.6mm
Max Bore A 50mm
Outer Hub Diameter E 112mm
Overall Sheave Depth F 28mm
Bush Seat Length G 32mm
Inner Recess Diameter D 162mm
Inner Recess Length H 3mm
