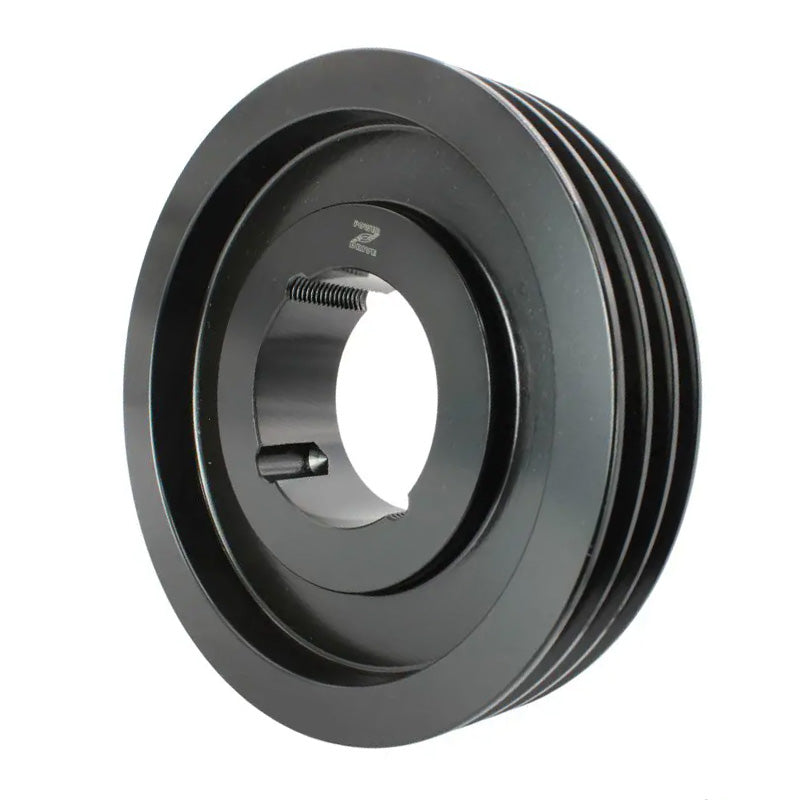

• 190X3SPZ 190mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)
1 1

SKU: 190SPZ3-MB

190X3SPZ 190mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)

190X3SPZ 190mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)
$36.80 ex VAT
$36.80 ex VAT
Sale Sold out

In stock

Price Break
3+ $24.65
5+ $23.26
9+ $22.99
19+ $22.71
49+ $22.43
74+ $22.16
99+ $20.77
199+ $20.50
249+ $20.22
499+ $19.94
999+ $19.39

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
3
Outside Diameter:
194.6mm
Pitch Diameter:
190mm
Max Bore:
50mm

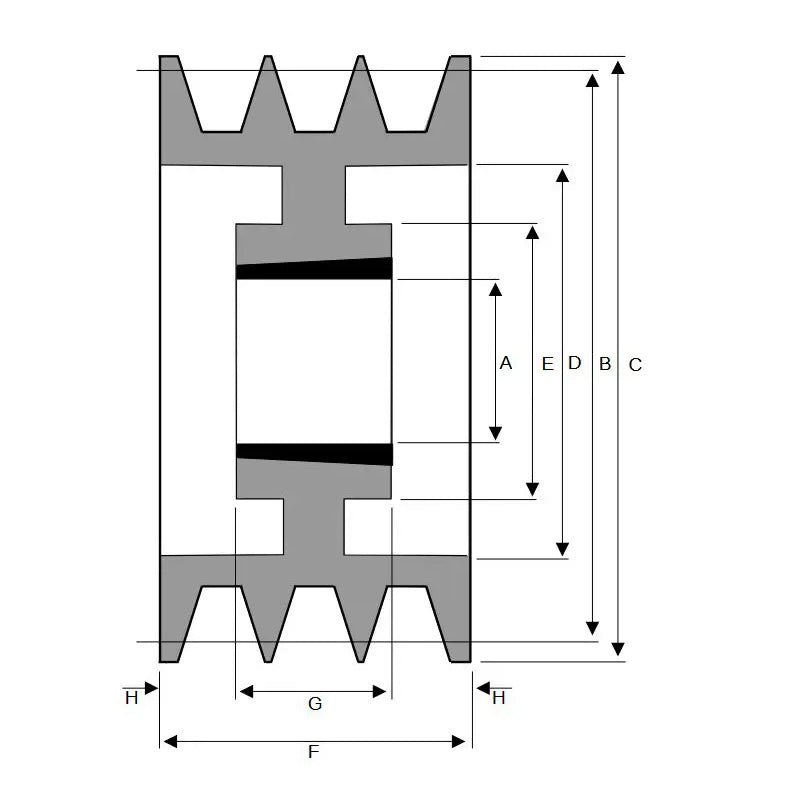

Technical
Number of Grooves 3
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=2012+tapered+locking+bush">2012 Click Here</a>
Pitch Diameter B 190mm
Overall Outer Diameter C 194.6mm
Max Bore A 50mm
Outer Hub Diameter E 112mm
Overall Sheave Depth F 40mm
Bush Seat Length G 32mm
Inner Recess Diameter D 161mm
Inner Recess Length H 4mm
