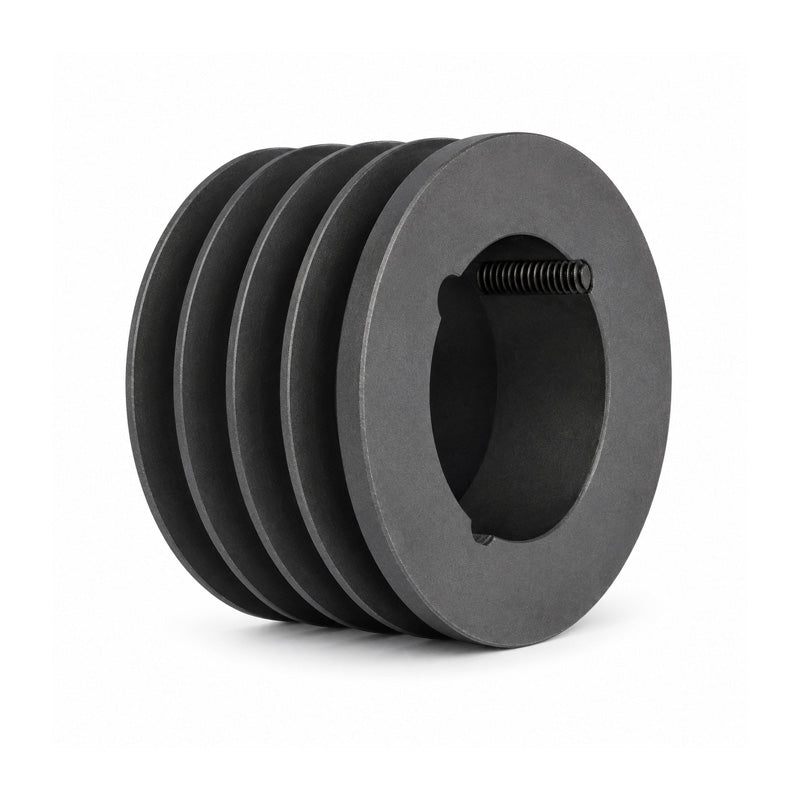

• 190X4SPZ 190mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
1 1

SKU: 190SPZ4-MB

190X4SPZ 190mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)

190X4SPZ 190mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
$48.52 ex VAT
$48.52 ex VAT
Sale Sold out

In stock

Price Break
3+ $32.50
5+ $30.68
9+ $30.31
19+ $29.95
49+ $29.58
74+ $29.22
99+ $27.39
199+ $27.03
249+ $26.66
499+ $26.30
999+ $25.56

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
4
Outside Diameter:
194mm
Pitch Diameter:
190mm
Max Bore:
65mm
Technical
Number of Grooves 4
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=2517+tapered+locking+bush">2517 Click Here</a>
Pitch Diameter B 190mm
Overall Outer Diameter C 194mm
Max Bore A 65mm
Overall Sheave Depth F 52mm
Bush Seat Length G 45mm
Inner Recess Length H 7mm
