• Timken 19145D/19268 TDI Double Inner Race Taper Roller Bearing 1.4375x2.6875x1.4492x1.5 inch
  • Timken 19145D/19268 TDI Double Inner Race Taper Roller Bearing 1.4375x2.6875x1.4492x1.5 inch
  • Timken
1 3

SKU: 19145D/19268-TIM

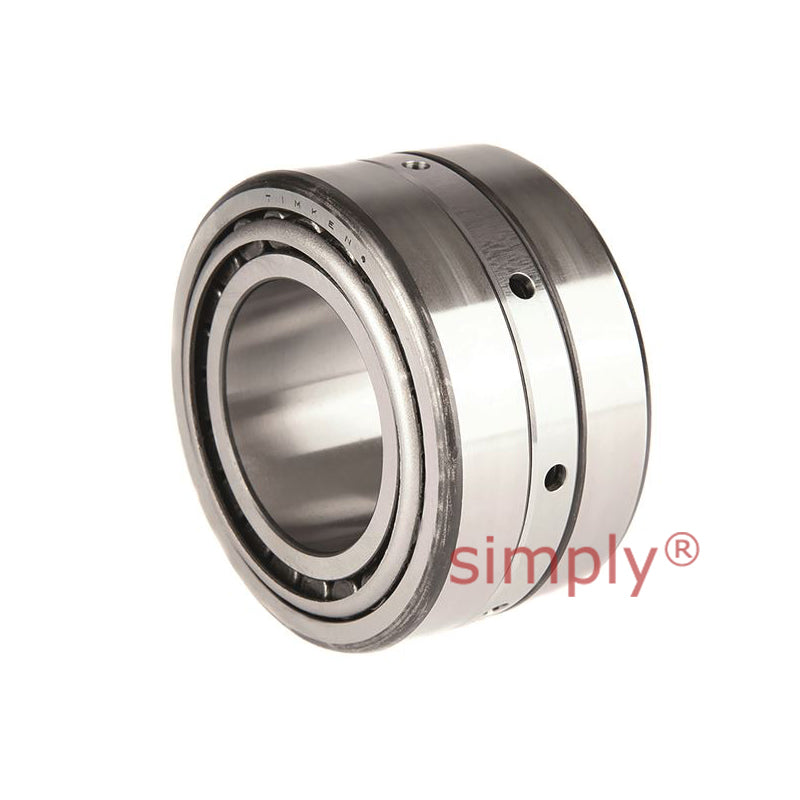

Timken 19145D/19268 TDI Double Inner Race Taper Roller Bearing 1.4375x2.6875x1.4492x1.5 inch

Timken 19145D/19268 TDI Double Inner Race Taper Roller Bearing 1.4375x2.6875x1.4492x1.5 inch
$507.46 ex VAT
$507.46 ex VAT
Sale Sold out

In stock

Price Break
10+ $339.91
20+ $320.81
30+ $317.00
40+ $313.18
50+ $309.36
75+ $305.54
100+ $286.44
200+ $282.62
250+ $278.80
500+ $274.98
1000+ $267.35

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

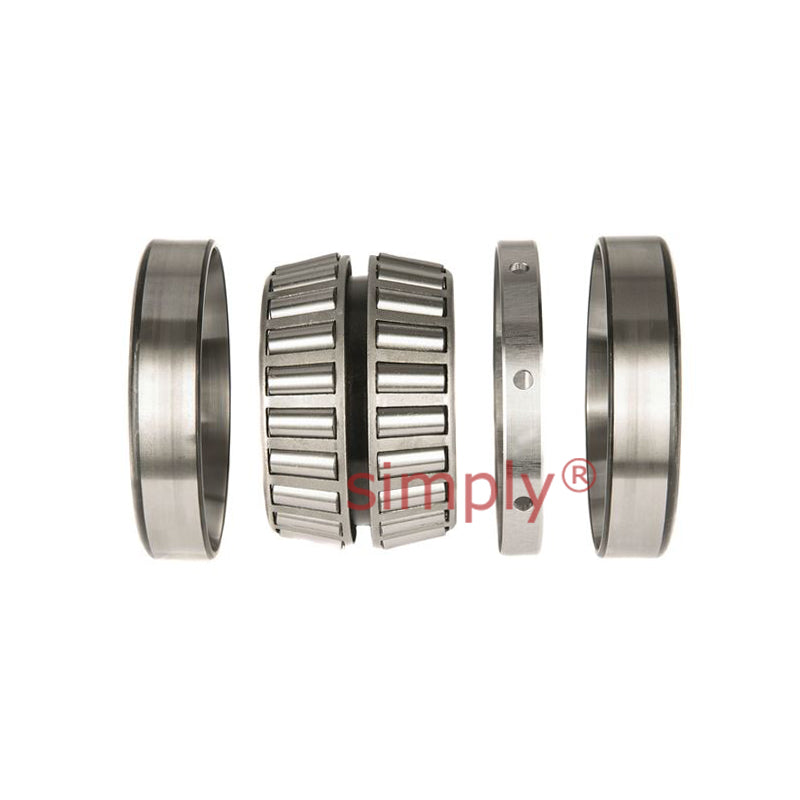

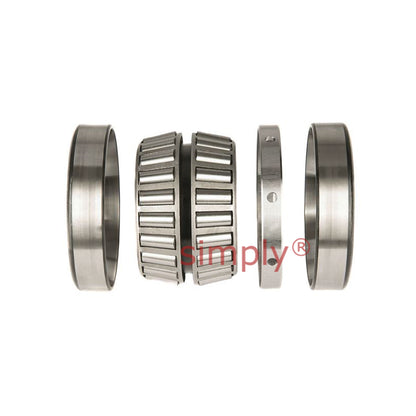

Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load

Brand / Quality:
Timken - High Quality
Inside Diameter:
36.51mm = 1.437 (1-7/16) inch
Outside Diameter:
68.26mm = 2.687 (2-11/16) inch
Width:
36.81mm = 1.449 inch
Technical
d 36.512mm = 1.4375 inch
D 68.262mm = 2.6875 inch
T 36.81mm = 1.4492 inch
C 38.1mm = 1.5 inch
Dynamic (1) C1 81700N
Factors (5) e 0.44
Factors (5) Y2 2.26
Dynamic (2) C90 12200N
Dynamic (2) Ca90 9260N
Dynamic (2) C90(2) 21200N
Factors (5) K 1.31
Shaft max shaft fillet radius R (3) 0.8mm = 0.03 inch
Shaft backing shoulder diameter da 42.5mm = 1.67 inch
Housing max shaft fillet radius r (3) 1.5mm = 0.06 inch
Housing backing shoulder diameter Db 61mm = 2.4 inch
G1 17.5
G2 11.5
Cg 0.0694
