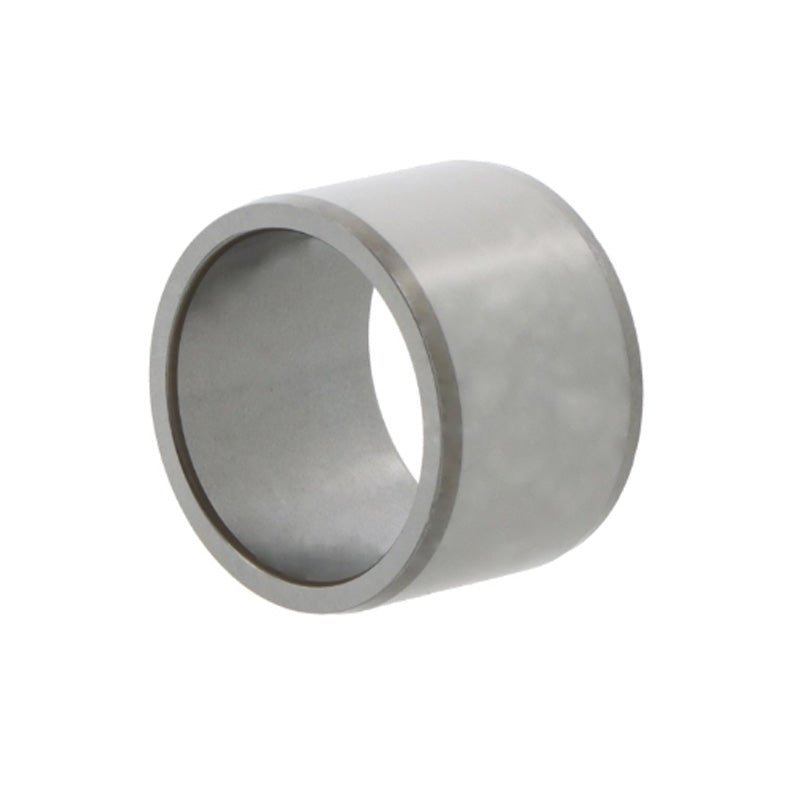

NTN 1R45X50X35 Needle Roller Inner Race 45x50x35mm

Name: NTN 1R45X50X35 Needle Roller Inner Race 45x50x35mm
Brand: NTN
SKU: 1R45X50X35-NTN
Price: 17.43 USD
Availability: InStock

$17.43 ex VAT

Sale Sold out

In stock

Price Break

3+ $11.68

4+ $11.02

9+ $10.89

19+ $10.76

49+ $10.63

99+ $10.50

499+ $9.84

999+ $9.71

1999+ $9.58

2999+ $9.45

4999+ $9.18

Return policy

90-Days Free Returns

Low cost shipping

International Delivery

Description

Technical

d - Inside diameter	45mm
F - Outside diameter	50mm
B - Width	35mm
r - Minimum fillet radius	0.6mm
Lubrication hole on inner ring?	No
t - Chamfer length	2mm
Precision class	P0
da min - Minimum shoulder diameter	49mm
ras max - Maximum shaft & housing filler radius	0.6mm
