SKU: 1SS316-JUB

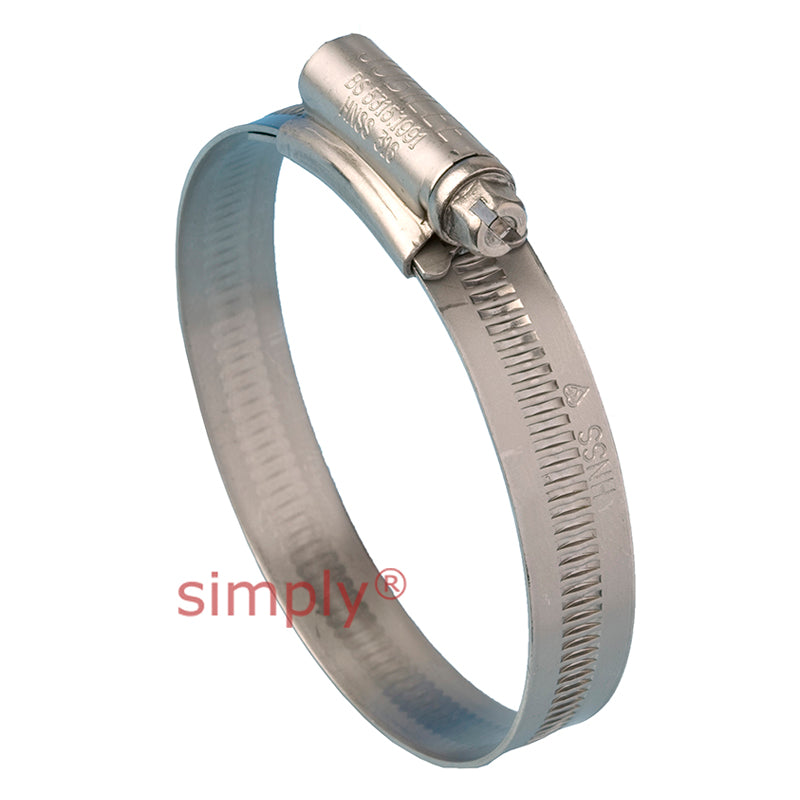

1SS316 316 Stainless Steel HNSS Original Jubilee Clip Adjustment Range 25mm - 35mm Band Width 13mm
- Regular price
- $7.65 ex VAT
- Sale price
- $7.65
- Regular price
-
Not in stock
Quantity Price Breaks
3
$6.81
5
$6.43
9
$6.35
19
$6.27
49
$6.20
74
$6.12
99
$5.74
199
$5.66
249
$5.58
499
$5.51
999
$5.36
SKU:
1SS316-JUB
1SS316 316 Stainless Steel HNSS Original Jubilee Clip Adjustment Range 25mm - 35mm Band Width 13mm
- Regular price
- $7.65 ex VAT
- Sale price
- $7.65
- Regular price
-
Description
316 Stainless Steel HNSS Worm Drive Jubilee Clips: The original Jubilee® Clips. Suitable for most day to day needs in the automotive, agricultural, irrigation and farm machinery.
Benefits: Rolled edges provide protection to softer hoses.
Technical
| BS No. | = | 35 |
| Adjustment Range | = | 25mm - 35mm |
| Adjustment Range | = | 1 - 1-3/8 inch |
| Band Width (+/- 0.1) | = | 13mm |
| Band Thickness (+/- 0.1) | = | 0.914mm |
| Recommended Torque | = | 5.1Nm |
| Maximum Torque | = | 6.8Nm |
| Maximum Pressure | = | 102 Psi |
