SKU: 20-B-30-01-ROLL-REN

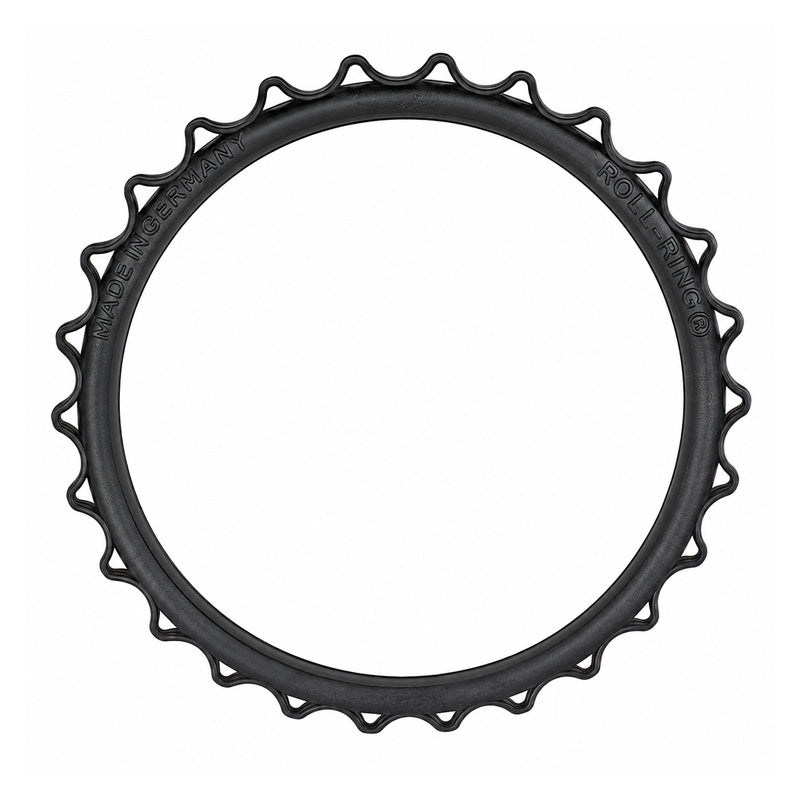

Renold 30 Tooth 20-B Roll Ring for 1-1/4 inch Pitch - Ambient Temperature -4 to+40°C
Renold 30 Tooth 20-B Roll Ring for 1-1/4 inch Pitch - Ambient Temperature -4 to+40°C
Out of stock
Description
Description
|
Renold Roll Ring: The ROLL-RING® is designed to deform to an elliptical shape, when the drive is in use. This is due to ROLL-RING® being compressed completely absorbs any slack in the system. ROLL-RING® chain tensioners are maintenance free and can be fitted to a wide variety of chain drives with no installation downtime. The ROLL-RING® has been modified to the maximum permissible chain speed, wear period, chemical resistance and cold flexibility. They are therefore ideal for a wide spectrum of mechanical engineering. |
- Brand / Quality:
- Renold - High Quality
- Teeth:
- 30
- Pitch:
- 1-1/4 inches
Technical
Technical
| do | 303.7mm |
|---|---|
| di | 256.4mm |
| s | 65mm |
| A | 390mm |
| D = do-s | 238.7mm |
| Chain Dimension - p x b1- inches | 11/4x3/4 |
| Max Static Expansive Force - N** | 80.5 |
| Maximum Chain Speed m/s | 7 |
| Ambient Temperature (°C) | -4 to+40 |
| Weight (kg) | 0.233 |
