• 200X2SPA 200mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 2 Grooves (Bush not Incl.)
  • 200X2SPA 200mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 2 Grooves (Bush not Incl.)
1 2

SKU: 200SPA2-MB

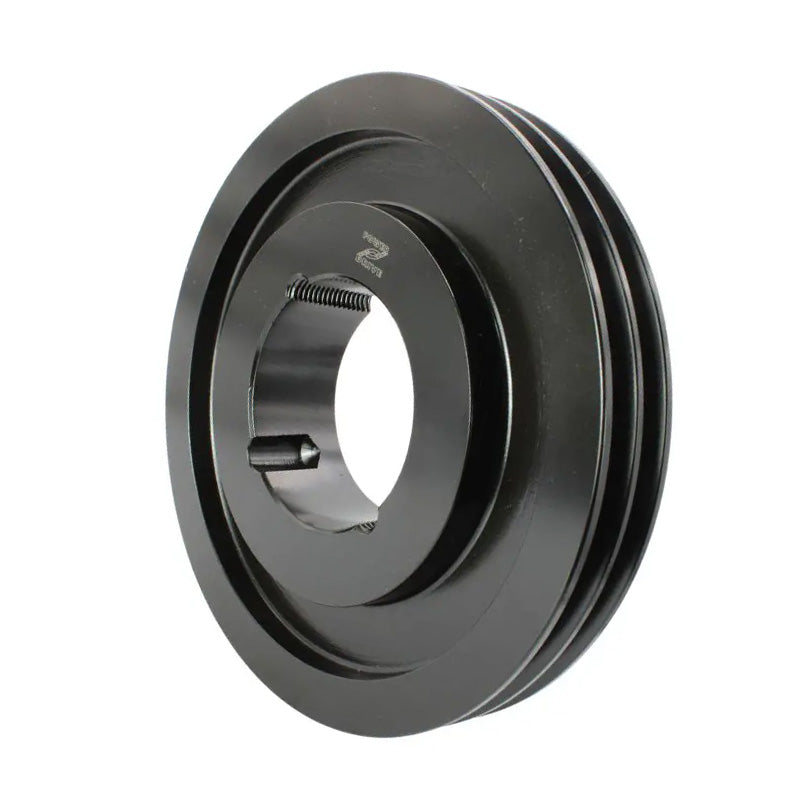

200X2SPA 200mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 2 Grooves (Bush not Incl.)

200X2SPA 200mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 2 Grooves (Bush not Incl.)
$45.76 ex VAT
$45.76 ex VAT
Sale Sold out

In stock

Price Break
3+ $30.65
5+ $28.93
9+ $28.59
19+ $28.24
49+ $27.90
74+ $27.55
99+ $25.83
199+ $25.49
249+ $25.14
499+ $24.80
999+ $24.11

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
2
Outside Diameter:
206.2mm
Pitch Diameter:
200mm
Max Bore:
60mm

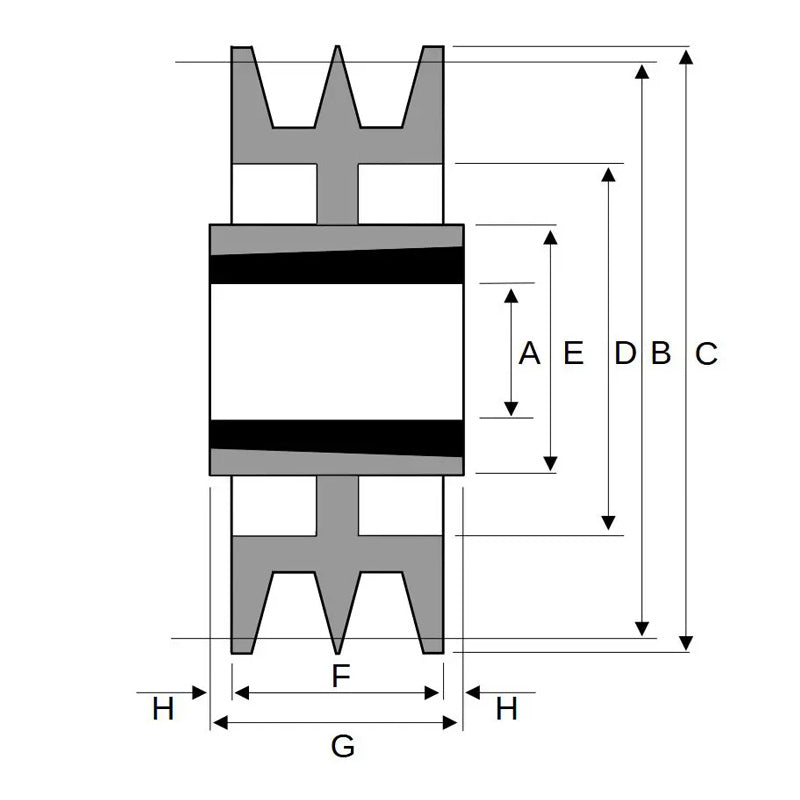

Technical
Number of Grooves 2
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=2517+tapered+locking+bush">2517 Click Here</a>
Pitch Diameter B 200mm
Overall Outer Diameter C 206.2mm
Max Bore A 60mm
Outer Hub Diameter E 123mm
Overall Sheave Depth F 35mm
Bush Seat Length G 45mm
Inner Recess Diameter D 165mm
Inner Recess Length H 5mm
