• 200X3SPA 200mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)
  • 200X3SPA 200mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)
1 2

SKU: 200SPA3-MB

200X3SPA 200mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)

200X3SPA 200mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)
$53.08 ex VAT
$53.08 ex VAT
Sale Sold out

In stock

Price Break
3+ $35.55
5+ $33.56
9+ $33.16
19+ $32.76
49+ $32.36
74+ $31.96
99+ $29.96
199+ $29.56
249+ $29.16
499+ $28.76
999+ $27.96

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
3
Outside Diameter:
206.2mm
Pitch Diameter:
200mm
Max Bore:
60mm

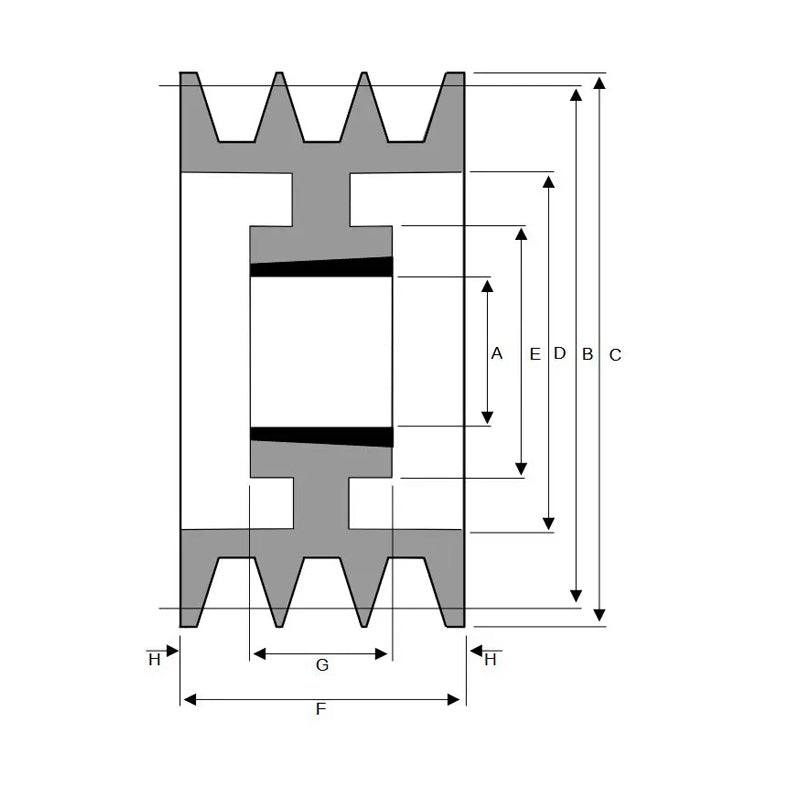

Technical
Number of Grooves 3
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=2517+tapered+locking+bush">2517 Click Here</a>
Pitch Diameter B 200mm
Overall Outer Diameter C 206.2mm
Max Bore A 60mm
Outer Hub Diameter E 123mm
Overall Sheave Depth F 50mm
Bush Seat Length G 45mm
Inner Recess Diameter D 165mm
Inner Recess Length H 2.5mm
