• 200X4SPA 200mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
  • 200X4SPA 200mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
1 2

SKU: 200SPA4-MB

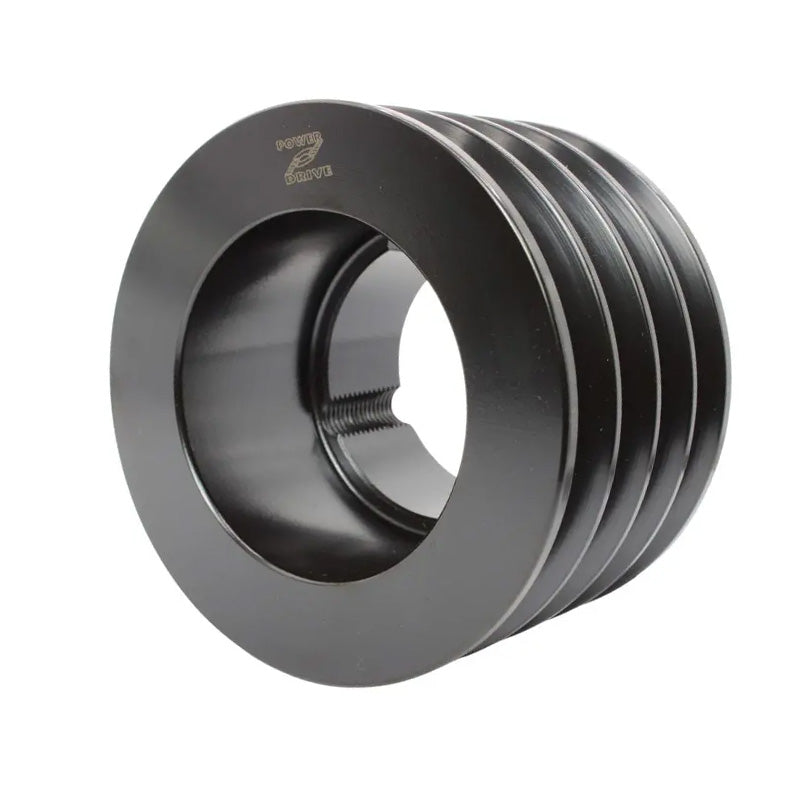

200X4SPA 200mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)

200X4SPA 200mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
$62.95 ex VAT
$62.95 ex VAT
Sale Sold out

In stock

Price Break
3+ $42.17
5+ $39.80
9+ $39.33
19+ $38.85
49+ $38.38
74+ $37.90
99+ $35.54
199+ $35.06
249+ $34.59
499+ $34.11
999+ $33.17

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
4
Outside Diameter:
206.2mm
Pitch Diameter:
200mm
Max Bore:
75mm

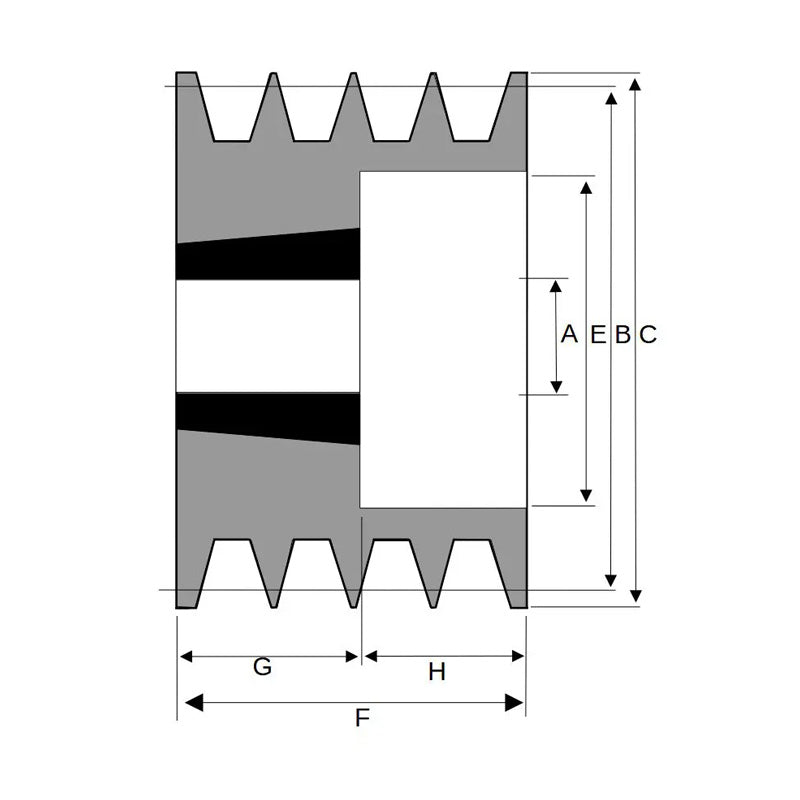

Technical
Number of Grooves 4
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3020+tapered+locking+bush">3020 Click Here</a>
Pitch Diameter B 200mm
Overall Outer Diameter C 206.2mm
Max Bore A 75mm
Outer Hub Diameter E mm
Overall Sheave Depth F 65mm
Bush Seat Length G 51mm
Inner Recess Diameter D 165mm
