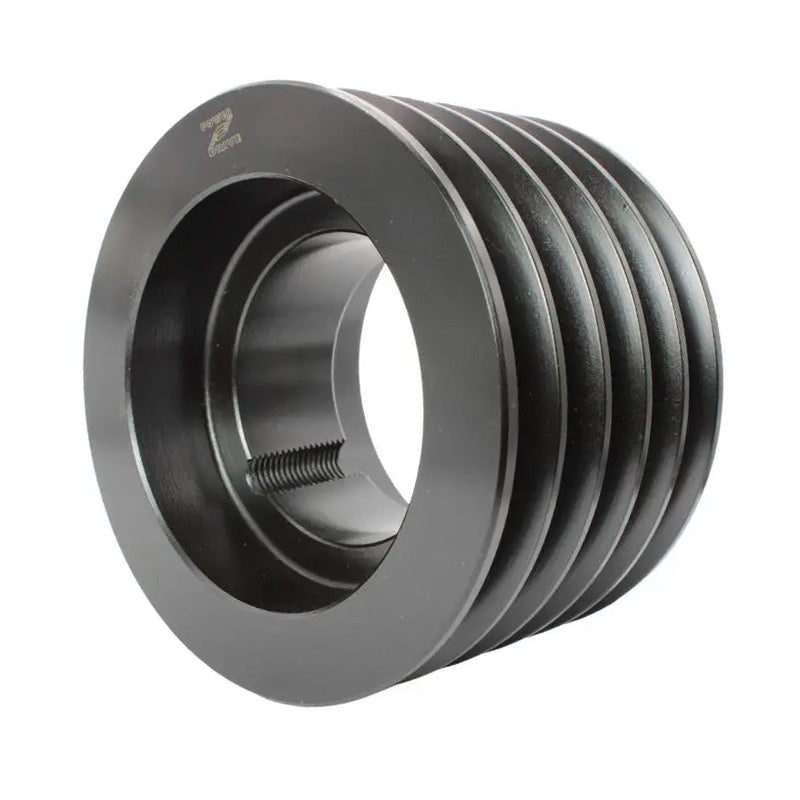

• 200X5SPA 200mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
  • 200X5SPA 200mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
1 2

SKU: 200SPA5-MB

200X5SPA 200mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)

200X5SPA 200mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
$69.21 ex VAT
$69.21 ex VAT
Sale Sold out

In stock

Price Break
3+ $46.36
5+ $43.76
9+ $43.24
19+ $42.72
49+ $42.20
74+ $41.67
99+ $39.07
199+ $38.55
249+ $38.03
499+ $37.51
999+ $36.47

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
5
Outside Diameter:
206.2mm
Pitch Diameter:
200mm
Max Bore:
75mm

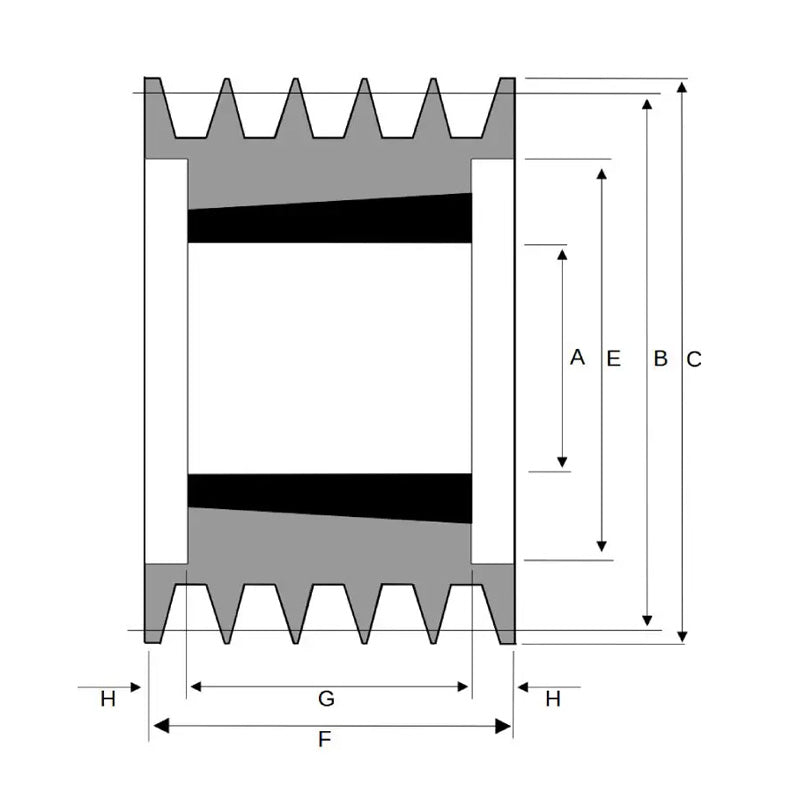

Technical
Number of Grooves 5
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3020+tapered+locking+bush">3020 Click Here</a>
Pitch Diameter B 200mm
Overall Outer Diameter C 206.2mm
Max Bore A 75mm
Overall Sheave Depth F 80mm
Bush Seat Length G 51mm
Inner Recess Diameter D 156mm
Inner Recess Length H 14.5mm
