• 200X6SPA 200mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)
  • 200X6SPA 200mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)
1 2

SKU: 200SPA6-MB

200X6SPA 200mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)

200X6SPA 200mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)
$81.20 ex VAT
$81.20 ex VAT
Sale Sold out

In stock

Price Break
3+ $54.39
5+ $51.33
9+ $50.72
19+ $50.11
49+ $49.50
74+ $48.89
99+ $45.83
199+ $45.22
249+ $44.61
499+ $44.00
999+ $42.78

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
6
Outside Diameter:
206.2mm
Pitch Diameter:
200mm
Max Bore:
75mm
Technical

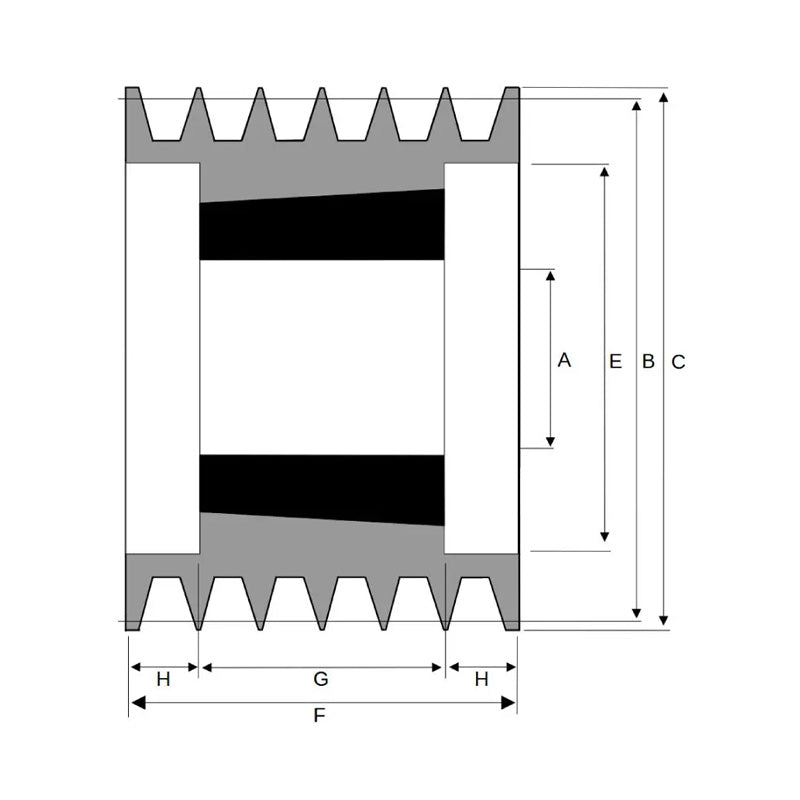

Number of Grooves 6
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3020+tapered+locking+bush">3020 Click Here</a>
Pitch Diameter B 200mm
Overall Outer Diameter C 206.2mm
Max Bore A 75mm
Overall Sheave Depth F 95mm
Bush Seat Length G 51mm
Inner Recess Diameter D 165mm
Inner Recess Length H 22mm
