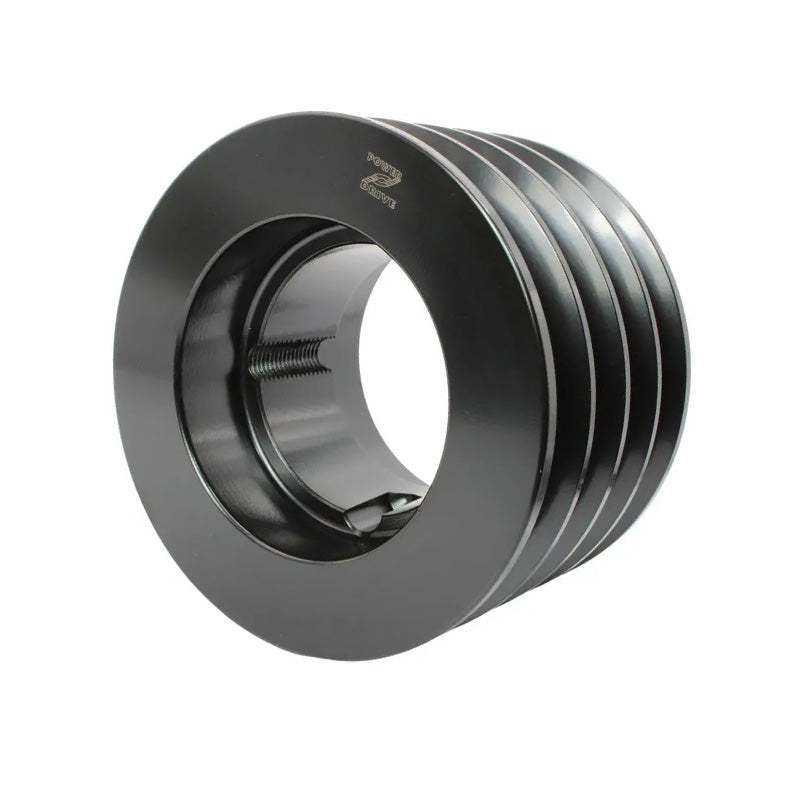

• 200X4SPB 200mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
  • 200X4SPB 200mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
1 2

SKU: 200SPB4-MB

200X4SPB 200mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)

200X4SPB 200mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
$75.28 ex VAT
$75.28 ex VAT
Sale Sold out

In stock

Price Break
3+ $50.42
5+ $47.59
9+ $47.02
19+ $46.46
49+ $45.89
74+ $45.32
99+ $42.49
199+ $41.93
249+ $41.36
499+ $40.79
999+ $39.66

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
4
Outside Diameter:
207.6mm
Pitch Diameter:
200mm
Max Bore:
75mm
Technical

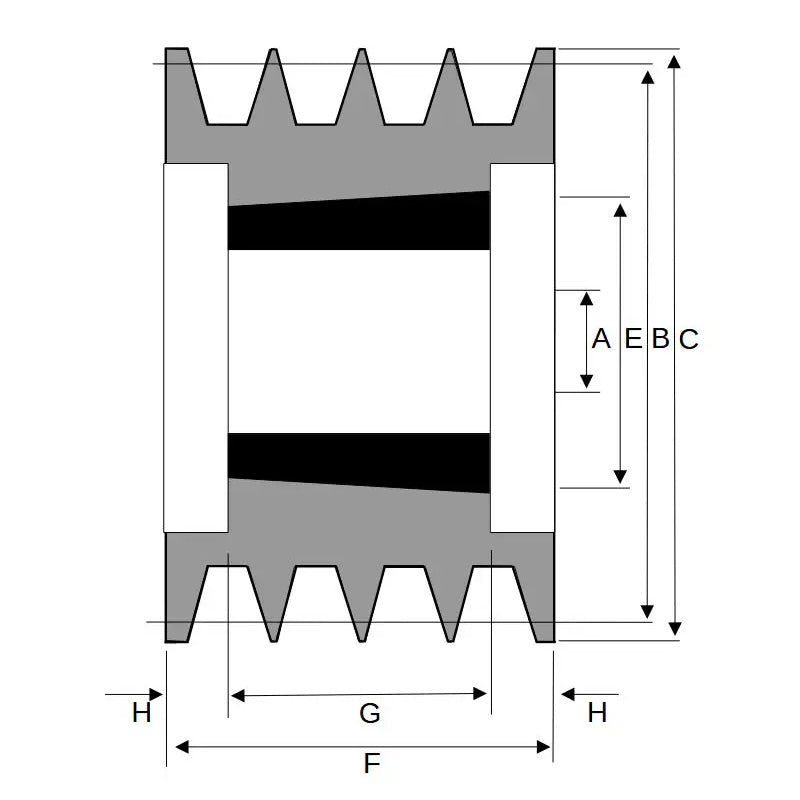

Number of Grooves 4
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3020+tapered+locking+bush">3020 Click Here</a>
Pitch Diameter B 200mm
Overall Outer Diameter C 207.6mm
Max Bore A 75mm
Overall Sheave Depth F 82mm
Bush Seat Length G 51mm
Inner Recess Diameter D 157mm
Inner Recess Length H 15.5mm
