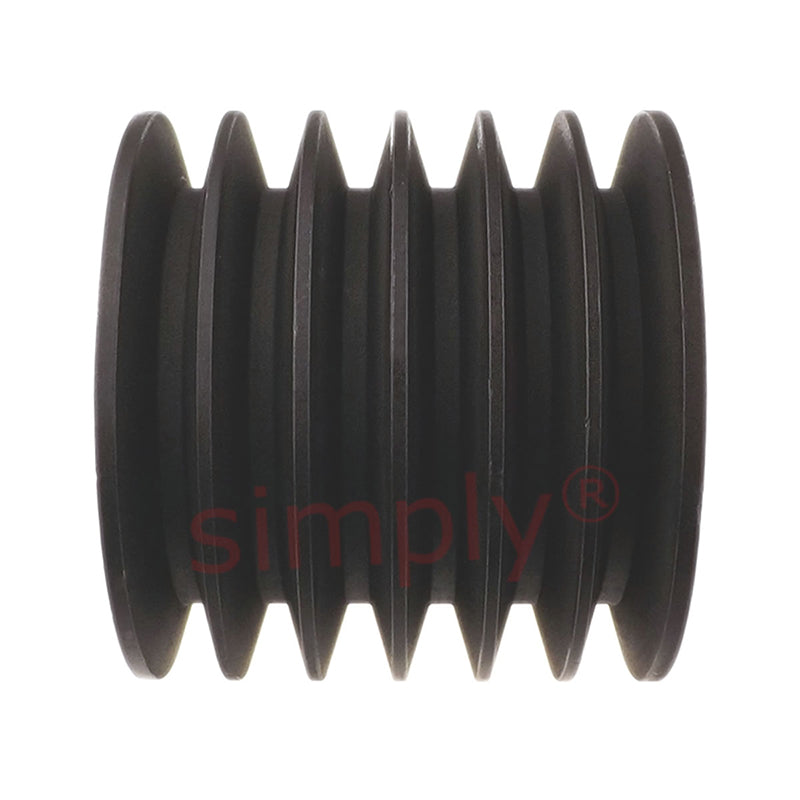

• 200X6SPC 200mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)
1 1

SKU: 200SPC6-MB

200X6SPC 200mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)

200X6SPC 200mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)
$180.46 ex VAT
$180.46 ex VAT
Sale Sold out

In stock

Price Break
3+ $120.88
5+ $114.09
9+ $112.73
19+ $111.38
49+ $110.02
74+ $108.66
99+ $101.87
199+ $100.51
249+ $99.15
499+ $97.79
999+ $95.08

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
6
Outside Diameter:
210.2mm
Pitch Diameter:
200mm
Max Bore:
90mm
Technical
Number of Grooves 6
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3525+tapered+locking+bush">3525 Click Here</a>
Pitch Diameter B 200mm
Overall Outer Diameter C 210.2mm
Max Bore A 90mm
Overall Sheave Depth F 162mm
Bush Seat Length G 65mm
Inner Recess Diameter D 143mm
Inner Recess Length H 48.5mm
