SKU: 200SPZ1-MB

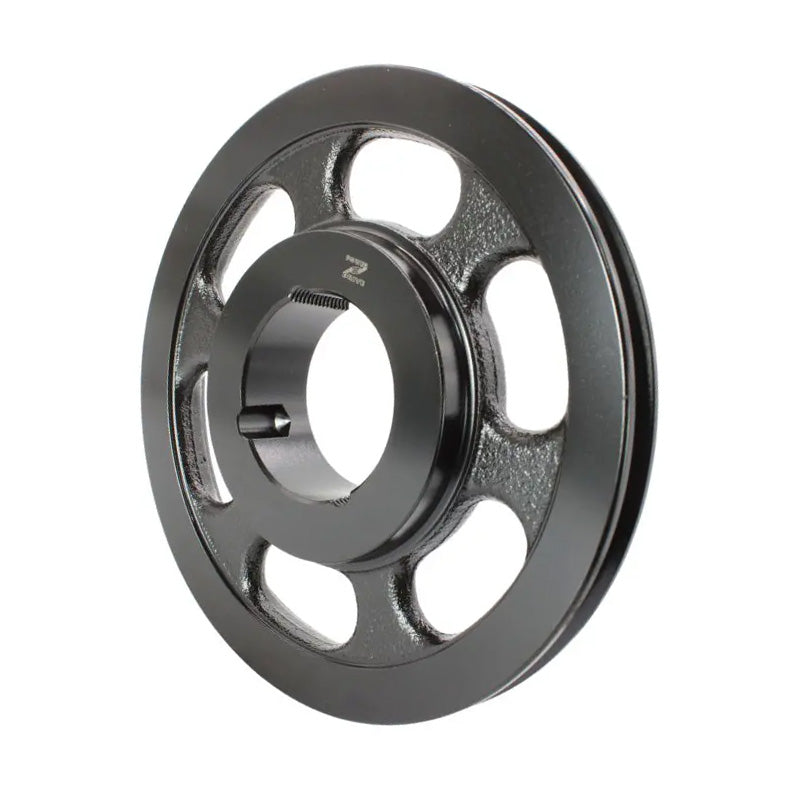

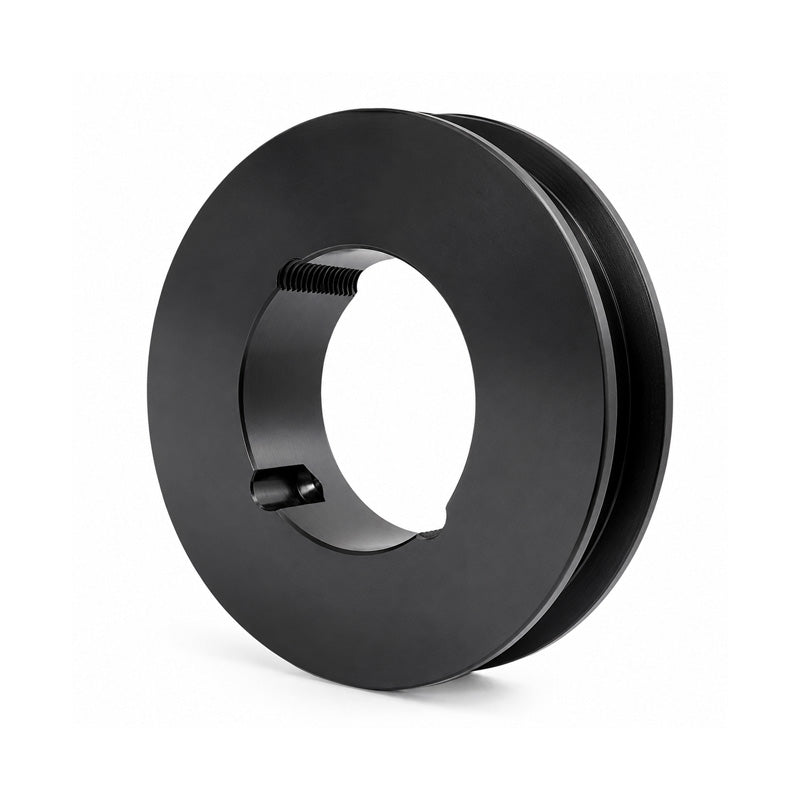

200X1SPZ 200mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 1 Groove (Bush not Incl.)

Name: 200X1SPZ 200mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 1 Groove (Bush not Incl.)
Brand: Major Brand
SKU: 200SPZ1-MB
Price: 29.74 USD
Availability: InStock

$29.74 ex VAT

Sale Sold out

In stock

Price Break

3+ $19.92

5+ $18.80

9+ $18.58

19+ $18.35

49+ $18.13

74+ $17.91

99+ $16.79

199+ $16.56

249+ $16.34

499+ $16.12

999+ $15.67

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Major Brand - High Quality
Grooves:: 1
Outside Diameter:: 204.6mm
Pitch Diameter:: 200mm
Max Bore:: 50mm

Technical

Number of Grooves	1
Bush	<a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=2012+tapered+locking+bush">2012 Click Here</a>
Pitch Diameter B	200mm
Overall Outer Diameter C	204.6mm
Max Bore A	50mm
Outer Hub Diameter E	112mm
Overall Sheave Depth F	16mm
Bush Seat Length G	32mm
Inner Recess Diameter D	171mm
Inner Recess Length H	15.5mm
