SKU: 200SPZ3-MB

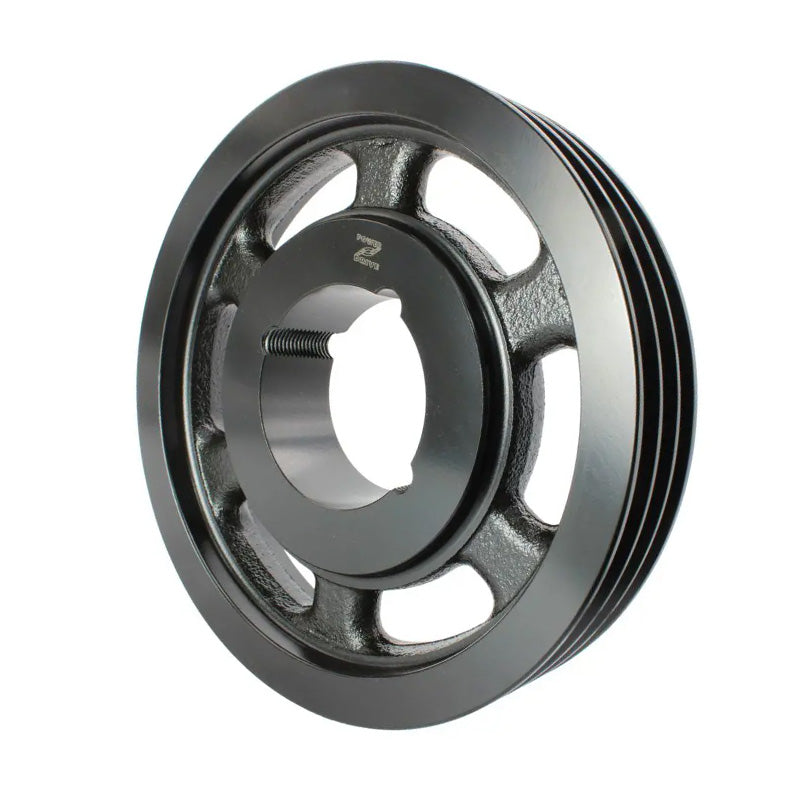

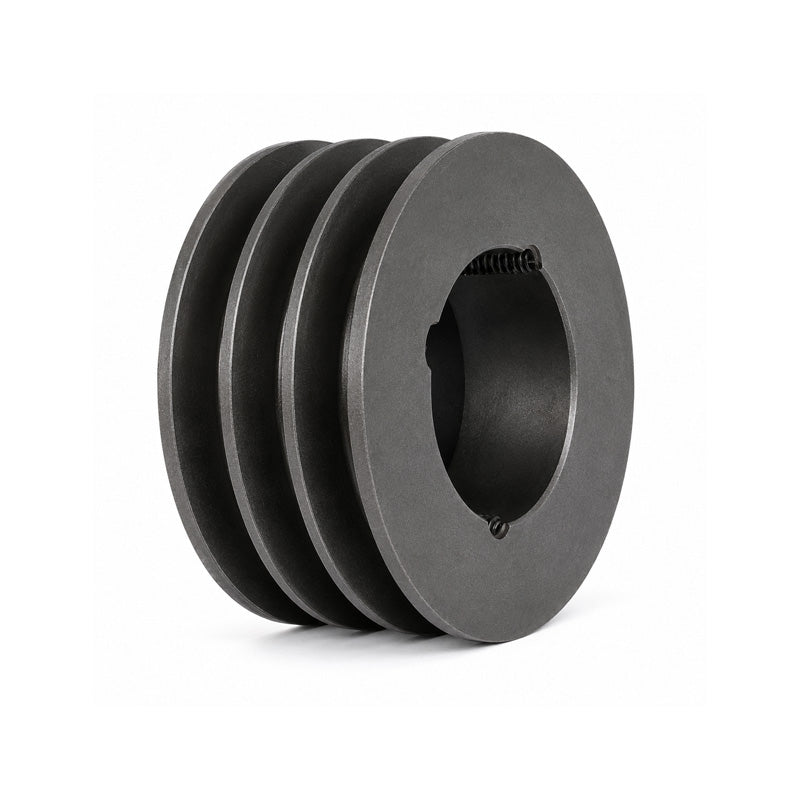

200X3SPZ 200mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)

Name: 200X3SPZ 200mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)
Brand: Major Brand
SKU: 200SPZ3-MB
Price: 43.34 USD
Availability: InStock

$43.34 ex VAT

Sale Sold out

In stock

Price Break

3+ $29.03

5+ $27.40

9+ $27.08

19+ $26.75

49+ $26.42

74+ $26.10

99+ $24.47

199+ $24.14

249+ $23.81

499+ $23.49

999+ $22.84

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Major Brand - High Quality
Grooves:: 3
Outside Diameter:: 204.6mm
Pitch Diameter:: 200mm
Max Bore:: 50mm

Technical

Number of Grooves	3
Bush	<a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=2012+tapered+locking+bush">2012 Click Here</a>
Pitch Diameter B	200mm
Overall Outer Diameter C	204.6mm
Max Bore A	50mm
Outer Hub Diameter E	112mm
Overall Sheave Depth F	40mm
Bush Seat Length G	32mm
Inner Recess Diameter D	171mm
Inner Recess Length H	4mm
