• 20205TVP Barrel Roller Bearing with Cylindrical Bore 25x52x15mm - Allow 2-3 Days
1 1

SKU: 20205-TVP-MB

20205TVP Barrel Roller Bearing with Cylindrical Bore 25x52x15mm - Allow 2-3 Days

20205TVP Barrel Roller Bearing with Cylindrical Bore 25x52x15mm - Allow 2-3 Days
$262.24 ex VAT
$262.24 ex VAT
Sale Sold out

In stock

Price Break
3+ $175.66
4+ $165.79
9+ $163.82
19+ $161.85
29+ $159.87
39+ $157.90
49+ $148.03
59+ $146.06
249+ $144.08
499+ $142.11
999+ $138.16

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

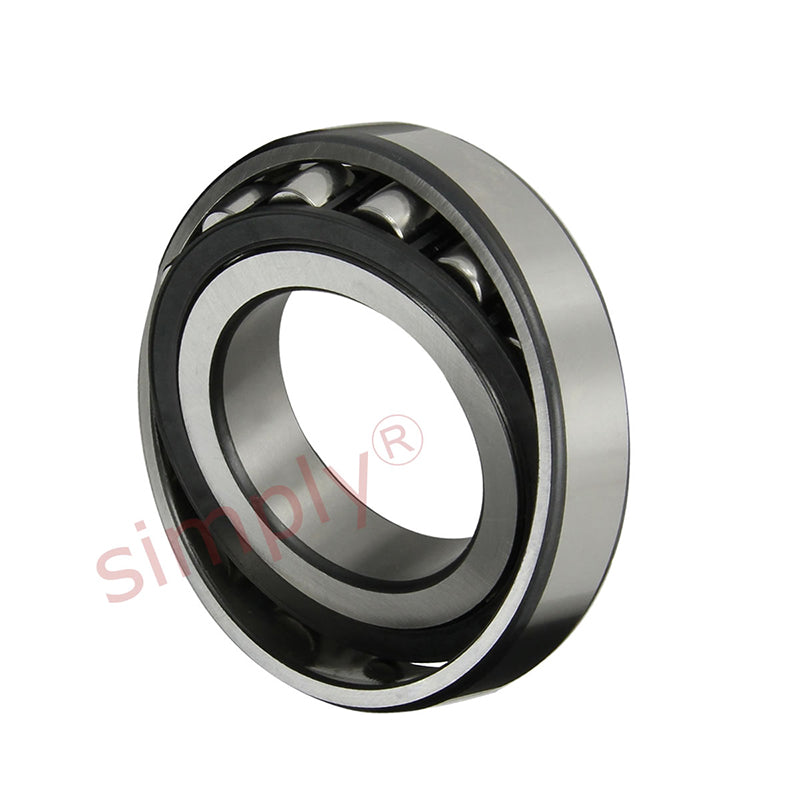

Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a cylindrical bore and a solid window cage made from glass fibre reinforced polyamide. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures up to +120 deg C.
Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated.
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
25mm
Outside Diameter:
52mm
Width:
15mm
Clearance:
* Standard
Technical
d 25mm
D 52mm
B 15mm
r min 1mm
D1 43.9mm
da min 30.6mm
Da max 46.4mm
ra max 1mm
Dynamic Load Cr 24000 N
Static Load C0r 25000 N
Fatigue limit load Cur 2190 N
Limiting speed nG 6700 rpm
Weight 0.134 kg
