SKU: 20206-K-TVP-C3-MB

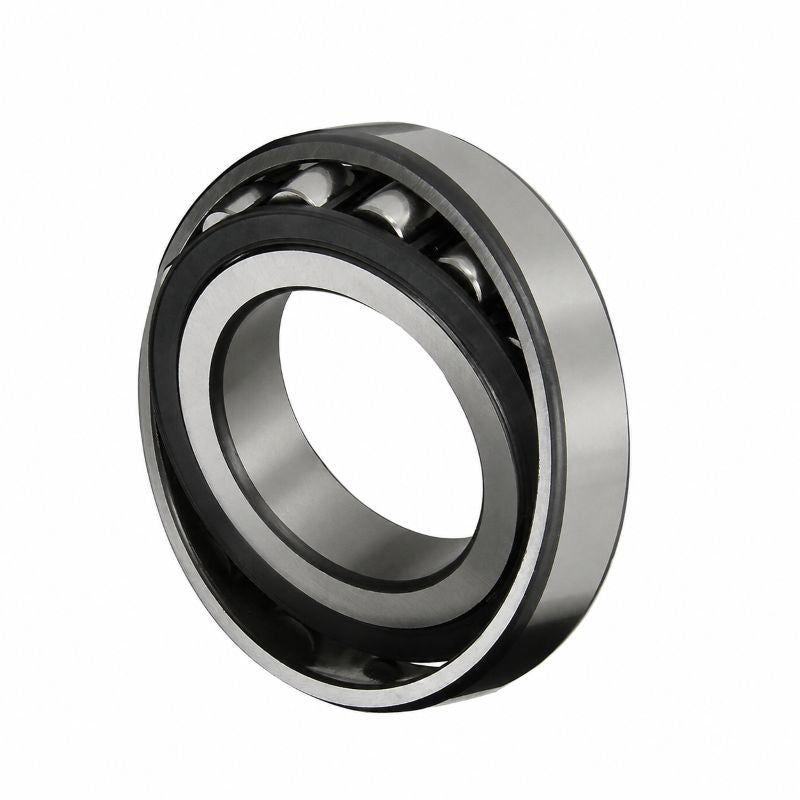

20206KTVPC3 Barrel Roller Bearing with Taper Bore 30x62x16mm - Allow 2-3 Days
20206KTVPC3 Barrel Roller Bearing with Taper Bore 30x62x16mm - Allow 2-3 Days
Regular price
$147.11
ex VAT
Regular price
Sale price
$147.11
ex VAT
In stock
Price Break
3+
$98.54
4+
$93.00
9+
$91.89
19+
$90.79
29+
$89.68
39+
$88.57
49+
$83.04
59+
$81.93
249+
$80.82
499+
$79.72
999+
$77.50
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a tapered bore and a solid window cage made from glass fibre reinforced polyamide. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures up to +120 deg C. Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Width:
- 16mm
- Clearance:
- C3
Technical
Technical
| d | 30mm |
|---|---|
| D | 62mm |
| B | 16mm |
| r min | 1mm |
| D1 | 53mm |
| da min | 35.6mm |
| Da max | 56.4mm |
| ra max | 1mm |
| Dynamic load Cr | 27500 N |
| Static load C0r | 28500 N |
| Fatigue limit load Cur | 2850 N |
| Limiting speed nG | 5600 rpm |
| Weight | 0.203 kg |
