• 20213KTVPC3 Barrel Roller Bearing with Taper Bore 65x120x23mm - Allow 2-3 Days
1 1

SKU: 20213-K-TVP-C3-MB

20213KTVPC3 Barrel Roller Bearing with Taper Bore 65x120x23mm - Allow 2-3 Days

20213KTVPC3 Barrel Roller Bearing with Taper Bore 65x120x23mm - Allow 2-3 Days
$298.27 ex VAT
$298.27 ex VAT
Sale Sold out

In stock

Price Break
3+ $199.78
4+ $188.56
9+ $186.31
19+ $184.07
29+ $181.83
39+ $179.58
49+ $168.36
59+ $166.11
249+ $163.87
499+ $161.62
999+ $157.13

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

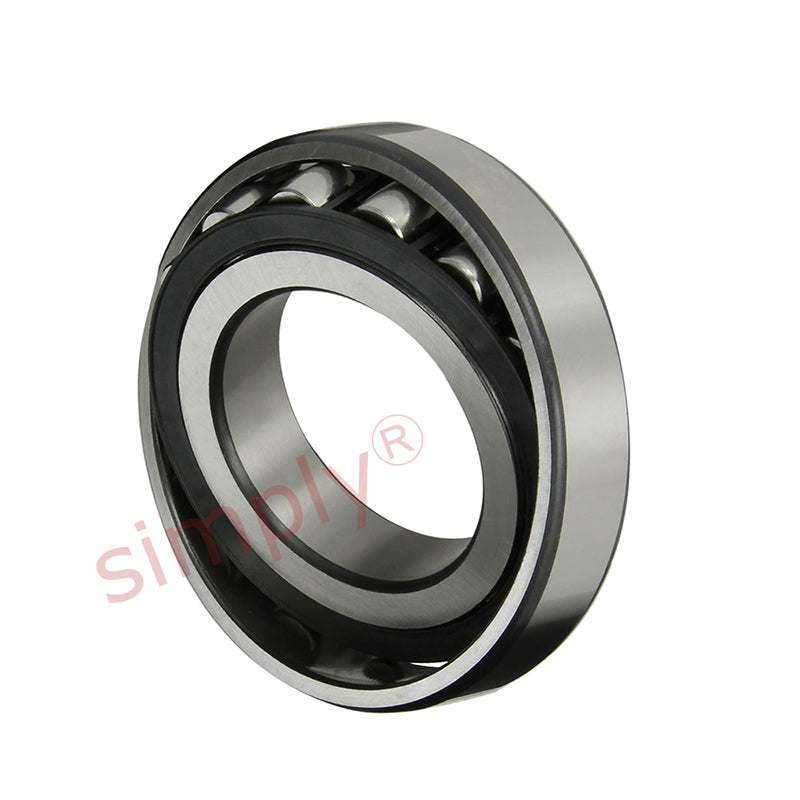

Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a tapered bore and a solid window cage made from glass fibre reinforced polyamide. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures up to +120 deg C.
Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated.
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
65mm
Outside Diameter:
120mm
Width:
23mm
Clearance:
C3
Technical
d 65mm
D 120mm
B 23mm
r min 1.5mm
D1 105.1mm
da min 74mm
Da max 111mm
ra max 1.5mm
Dynamic load Cr 95000 N
Static load C0r 116000 N
Fatigue limit load Cur 12700 N
Limiting speed nG 3000 rpm
Weight 1.07 kg
