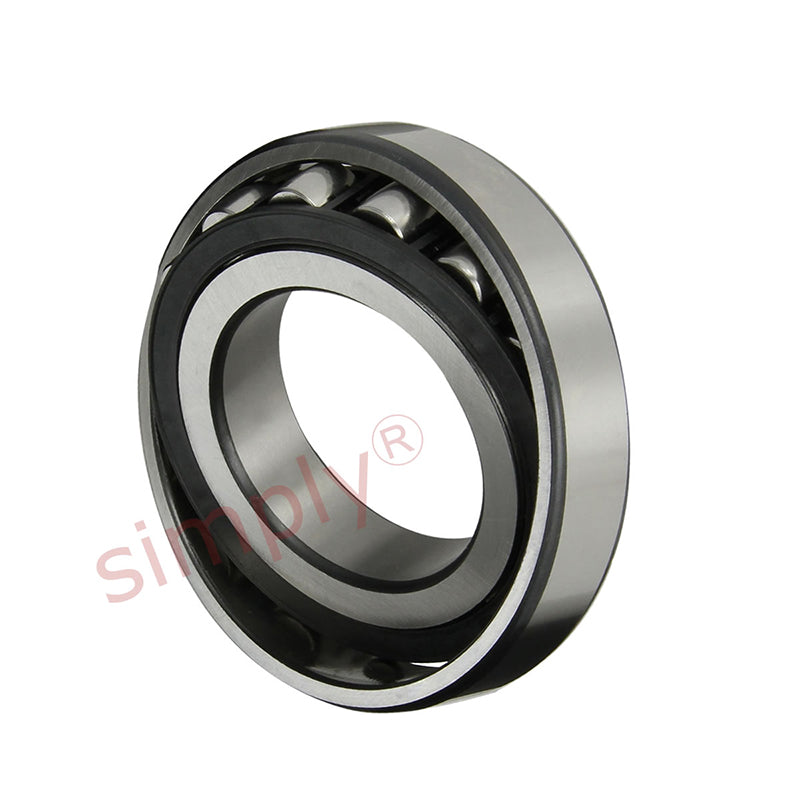

• 20215KTVPC3 Barrel Roller Bearing with Taper Bore 75x130x25mm - Allow 2-3 Days
1 1

SKU: 20215-K-TVP-C3-MB

20215KTVPC3 Barrel Roller Bearing with Taper Bore 75x130x25mm - Allow 2-3 Days

20215KTVPC3 Barrel Roller Bearing with Taper Bore 75x130x25mm - Allow 2-3 Days
$329.54 ex VAT
$329.54 ex VAT
Sale Sold out

In stock

Price Break
3+ $220.74
4+ $208.34
9+ $205.86
19+ $203.38
29+ $200.90
39+ $198.42
49+ $186.02
59+ $183.54
249+ $181.06
499+ $178.58
999+ $173.62

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a tapered bore and a solid window cage made from glass fibre reinforced polyamide. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures up to +120 deg C.
Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated.
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
75mm
Outside Diameter:
130mm
Width:
25mm
Clearance:
C3
Technical
d 75mm
D 130mm
B 25mm
r min 1.5mm
D1 115.9mm
da min 84mm
Da max 121mm
ra max 1.5mm
Dynamic load Cr 112000 N
Static load C0r 143000 N
Fatigue limit load Cur 16000 N
Limiting speed nG 2800 rpm
Weight 1.25 kg
