• 20310TVPC3 Barrel Roller Bearing with Cylindrical Bore 50x110x27mm - Allow 2-3 Days
1 1

SKU: 20310-TVP-C3-MB

20310TVPC3 Barrel Roller Bearing with Cylindrical Bore 50x110x27mm - Allow 2-3 Days

20310TVPC3 Barrel Roller Bearing with Cylindrical Bore 50x110x27mm - Allow 2-3 Days
$297.06 ex VAT
$297.06 ex VAT
Sale Sold out

In stock

Price Break
3+ $198.98
4+ $187.80
9+ $185.56
19+ $183.33
29+ $181.09
39+ $178.86
49+ $167.68
59+ $165.44
249+ $163.21
499+ $160.97
999+ $156.50

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

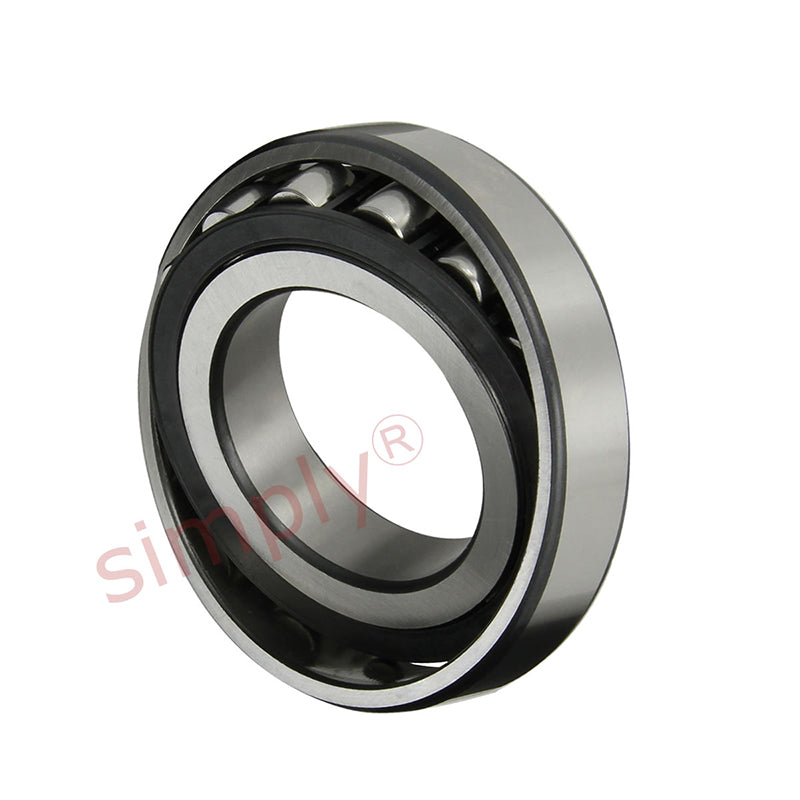

Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a cylindrical bore and a solid window cage made from glass fibre reinforced polyamide. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures up to +120 deg C.
Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated.
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
50mm
Outside Diameter:
110mm
Width:
27mm
Clearance:
C3
Technical
d 50mm
D 110mm
B 27mm
r min 2mm
D1 94.4mm
da min 61mm
Da max 99mm
ra max 2mm
Dynamic Load Cr 108000 N
Static Load C0r 118000 N
Fatigue limit load Cur 10600 N
Limiting speed nG 3400 rpm
Weight 1.17 kg
