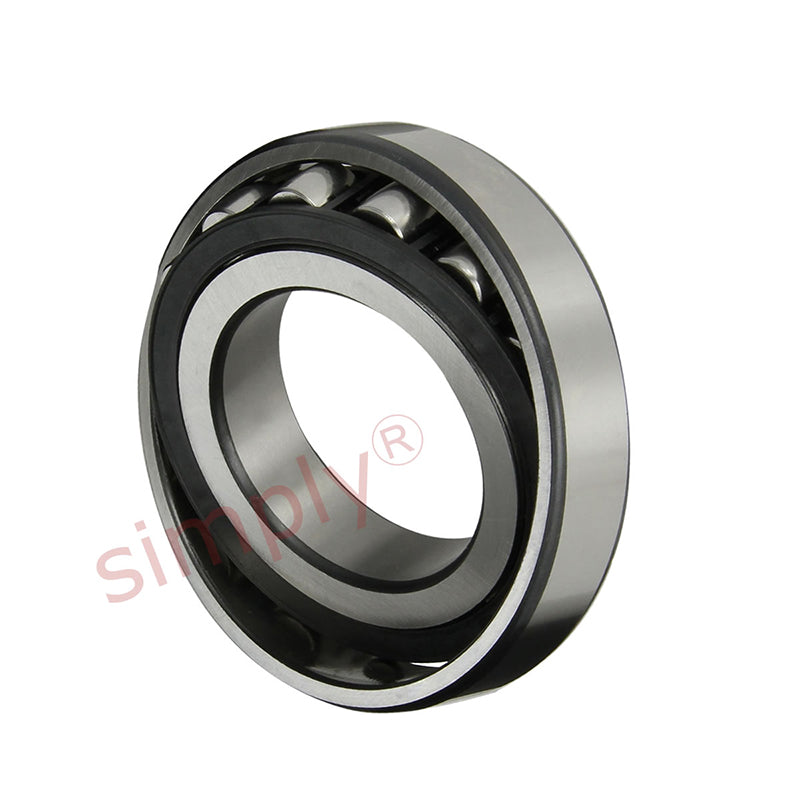

20312TVP Barrel Roller Bearing with Cylindrical Bore 60x130x31mm - Allow 2-3 Days

Name: 20312TVP Barrel Roller Bearing with Cylindrical Bore 60x130x31mm - Allow 2-3 Days
Brand: Major Brand
SKU: 20312-TVP-MB
Price: 341.16 USD
Availability: InStock

$341.16 ex VAT

Sale Sold out

In stock

Price Break

3+ $228.51

4+ $215.68

9+ $213.11

19+ $210.54

29+ $207.97

39+ $205.41

49+ $192.57

59+ $190.00

249+ $187.43

499+ $184.87

999+ $179.73

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a cylindrical bore and a solid window cage made from glass fibre reinforced polyamide. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures up to +120 deg C.
Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated.

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 60mm
Outside Diameter:: 130mm
Width:: 31mm
Clearance:: * Standard

Technical

d	60mm
D	130mm
B	31mm
r min	2.1mm
D1	111.2mm
da min	72mm
Da max	118mm
ra max	2.1mm
Dynamic Load Cr	146000 N
Static Load C0r	170000 N
Fatigue limit load Cur	15200 N
Limiting speed nG	2800 rpm
Weight	1.92 kg
