SKU: 20313-MB-MB

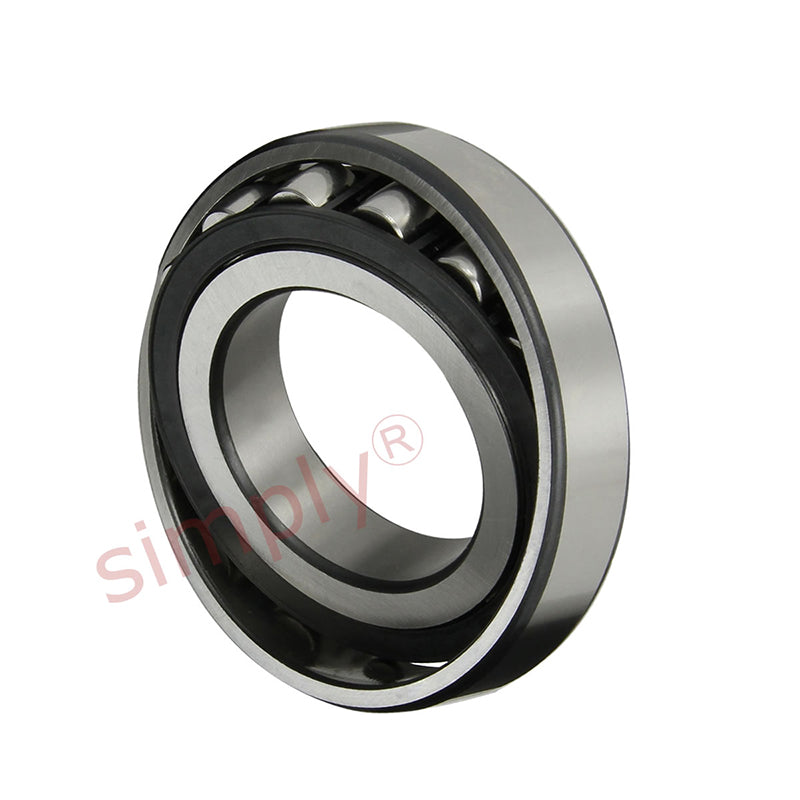

20313MB Barrel Roller Bearing with Cylindrical Bore 65x140x33mm - Allow 2-3 Days

Name: 20313MB Barrel Roller Bearing with Cylindrical Bore 65x140x33mm - Allow 2-3 Days
Brand: Major Brand
SKU: 20313-MB-MB
Price: 402.22 USD
Availability: InStock

$402.22 ex VAT

Sale Sold out

In stock

Price Break

3+ $269.42

4+ $254.28

9+ $251.26

19+ $248.23

29+ $245.20

39+ $242.17

49+ $227.04

59+ $224.01

249+ $220.98

499+ $217.96

999+ $211.90

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a cylindrical bore and a solid brass cage. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures from -30 deg C to +150 deg C.
Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated.

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 65mm
Outside Diameter:: 140mm
Width:: 33mm
Clearance:: * Standard

Technical

d	65mm
D	140mm
B	33mm
r min	1.5mm
D1	120.6mm
da min	77mm
Da max	128mm
ra max	2.1mm
Dynamic Load Cr	170000 N
Static Load C0r	196000 N
Fatigue limit load Cur	17900 N
Limiting speed nG	2800 rpm
Weight	2.18 kg
