SKU: 203KRR50-MB

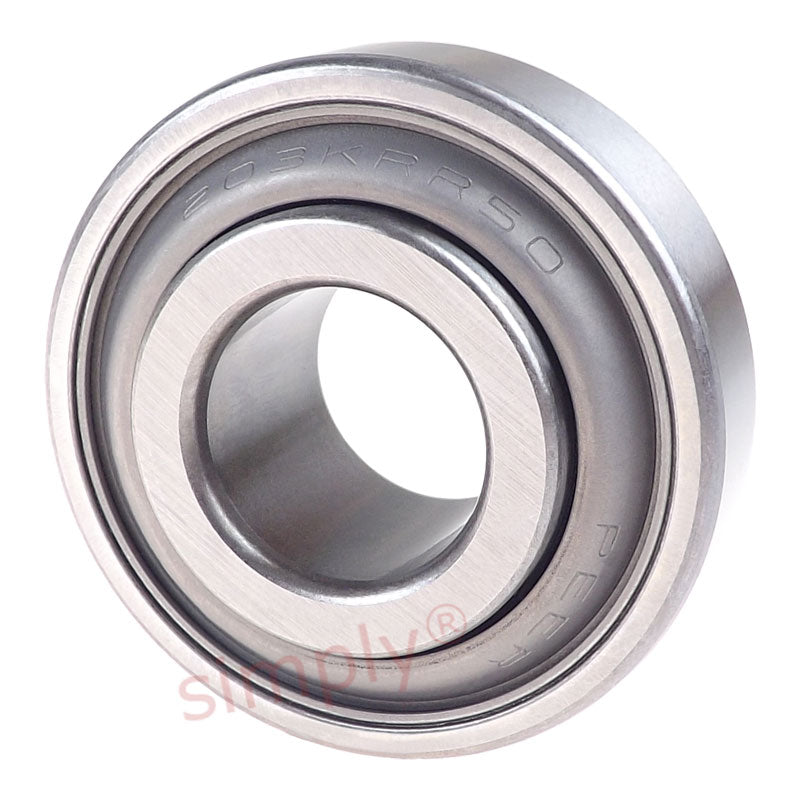

Major Brand 203KRR50 Idler Pulley Sprocket Round Bore Bearing 0.64x1.5748x0.72 inch - Allow 2-3 Days

Name: Major Brand 203KRR50 Idler Pulley Sprocket Round Bore Bearing 0.64x1.5748x0.72 inch - Allow 2-3 Days
Brand: PEER
SKU: 203KRR50-MB
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Seal Type: G
Typical Application & Speed Limit: Idler Sprockets/Conveyor Rolls - Basic BRG. Size < 205: 3000 RPM , Combine Power Transmission (PT)/Baler Drive Rolls - Basic BRG. Size > 205: 1750 RPM
Typical Environment: Indirect contamination, airborne dust, light/moderate water exposure
Contamination Exclusion: Moderate/High

Brand / Quality:: PEER - High Quality
Inside Diameter:: 16.25mm = 0.64 inch
Outside Diameter:: 40mm = 1.574 inch
Width:: 18.28mm = 0.72 inch

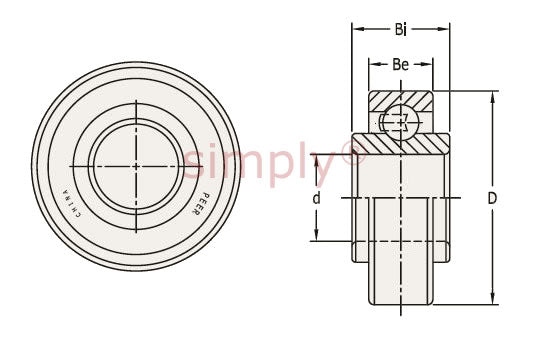

Technical

d	0.64 inch = 16.256mm (Tolerance +.0000 to minus 0.005)
D	1.5748 inch = 40mm (Tolerance +.0000 to minus 0.0005)
Bi	0.72 inch = 18.288mm (Tolerance +.0000 to minus 0.005)
Be	0.4724 inch = 12mm (Tolerance +.0000 to minus 0.005)
Seal/Shield Type	G Seal
Load Ratings Dynamic	2160 lbf
Load Ratings Static	889 lbf
