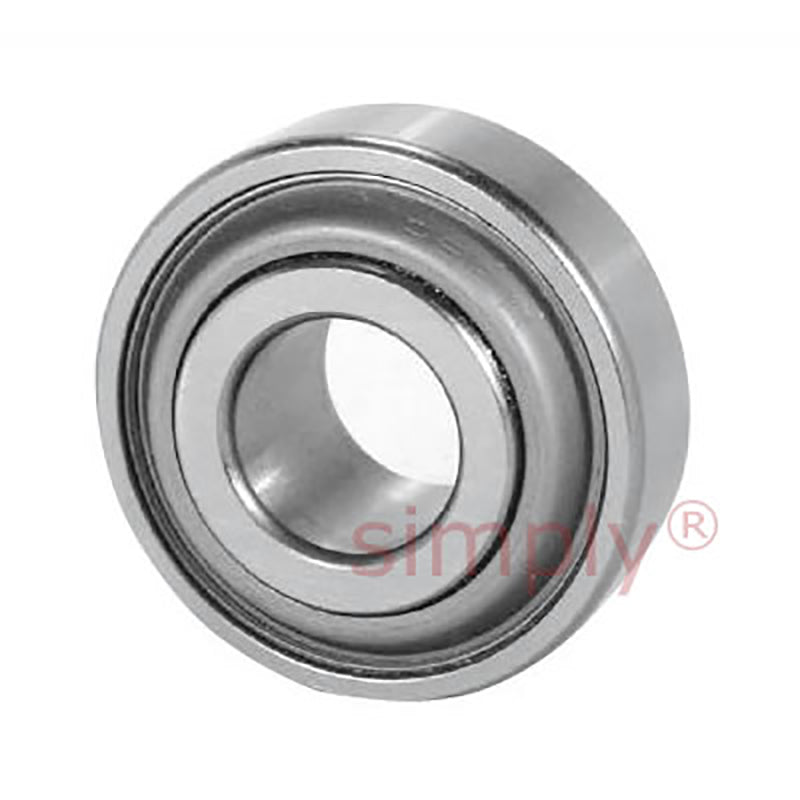

Major Brand 205KRP5RA17 Disc Opener Round Bore Bearing 0.7874x2.0472x0.831 inch

Disc Opener
Application conditions:

• Single disc or double disc arrangements are used to open the furrow
• Bearings are pressed into the housing which is riveted or screwed to the disc. The disc assembly is bolted to the machine frame
• High loads are encountered in no-till farming and due to angle of pull
• Rigid assembly is required for a precise disc mounting which creates a consistent furrow
• Dusty and sometimes moist environment

• HUB assembly is available for ease of mounting
• Reduced labour cost and eliminate damage due to incorrect assembly

• Optimized internal geometry
• High load capacity
• High contamination feature package with exclusive sealing system

• Rigid disc
• Minimized operating internal clearance

Seal Type: P, TRL
Typical Application & Speed Limit: Augers with Direct Crop Contact - Basic BRG. Size < 205: 800 RPM , Tillage/Baler Idler Rolls - Basic BRG. Size > 205: 500 RPM
Typical Environment: Direct ground and crop contact, moisture exposure
Contamination Exclusion: Severe

Brand / Quality:

PEER - High Quality

Inside Diameter:

20mm = 0.787 inch

Outside Diameter:

52mm = 2.047 (2-3/64) inch

Width:

21.1mm = 0.831 inch
