SKU: 205NPPBAH02.EU

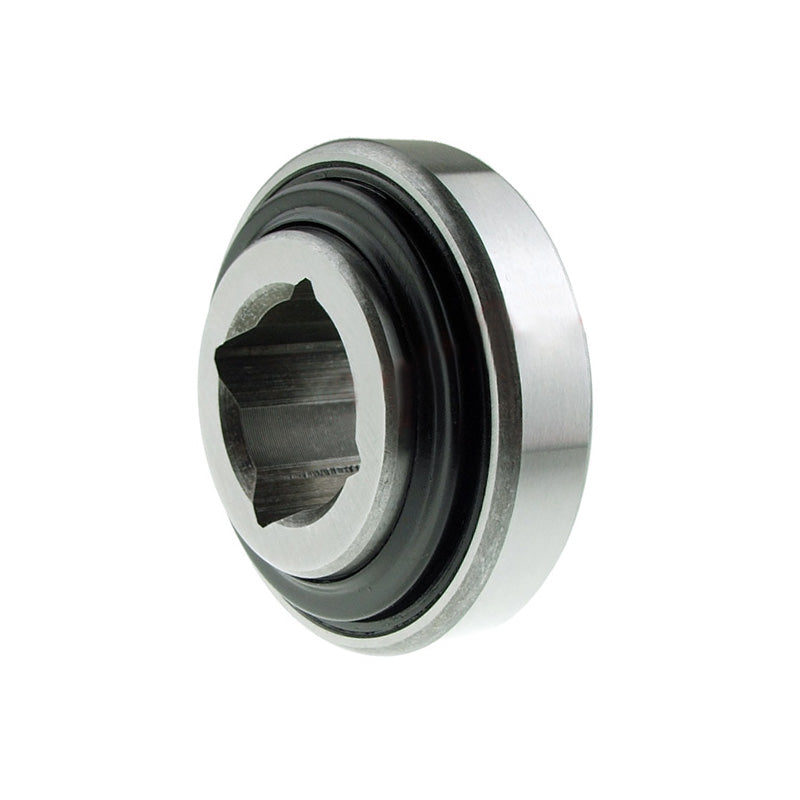

205NPPBAH02 22.25mm Square to Round Bore Disc Harrow Bearing
205NPPBAH02 22.25mm Square to Round Bore Disc Harrow Bearing
Out of stock
Share this product
Description
Description
|
Round to Square Bore Disc Harrow Bearings: Designed primarily for use in agricultural applications these ruggedly constructed ball bearings have a spherical outer raceway and a round to square bore, the inner race extends wider than the outer raceway. Benefits: Designed specifically for agricultural use |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 22.25mm
Technical
Technical
| H | 22.25mm |
|---|---|
| d | 22.7mm |
| R | 0.2mm |
| D | 52mm |
| B | 25.4mm |
| C | 15mm |
| Dynamic load | 14000 kN |
| Static load | 7880 kN |
| Weight | 0.5906 kg |
