SKU: 206NPPBAH02.EU

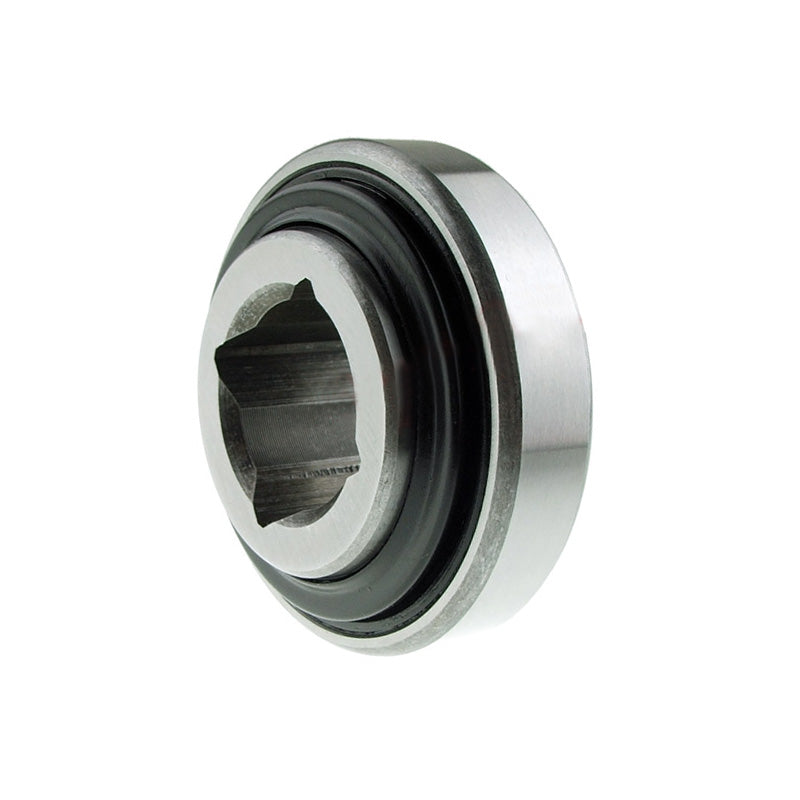

206NPPBAH02 22.25mm Square to Round Bore Disc Harrow Bearing
206NPPBAH02 22.25mm Square to Round Bore Disc Harrow Bearing
Out of stock
Share this product
Description
Description
|
Round to Square Bore Disc Harrow Bearings: Designed primarily for use in agricultural applications these ruggedly constructed ball bearings have a spherical outer raceway and a round to square bore, the inner race extends wider than the outer raceway. Benefits: Designed specifically for agricultural use |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 22.25mm
Technical
Technical
| H | 22.25mm |
|---|---|
| d | 22.7mm |
| R | 0.2mm |
| D | 62mm |
| B | 24mm |
| C | 18mm |
| Dynamic load | 19500 kN |
| Static load | 11200 kN |
| Weight | 0.7087 kg |
