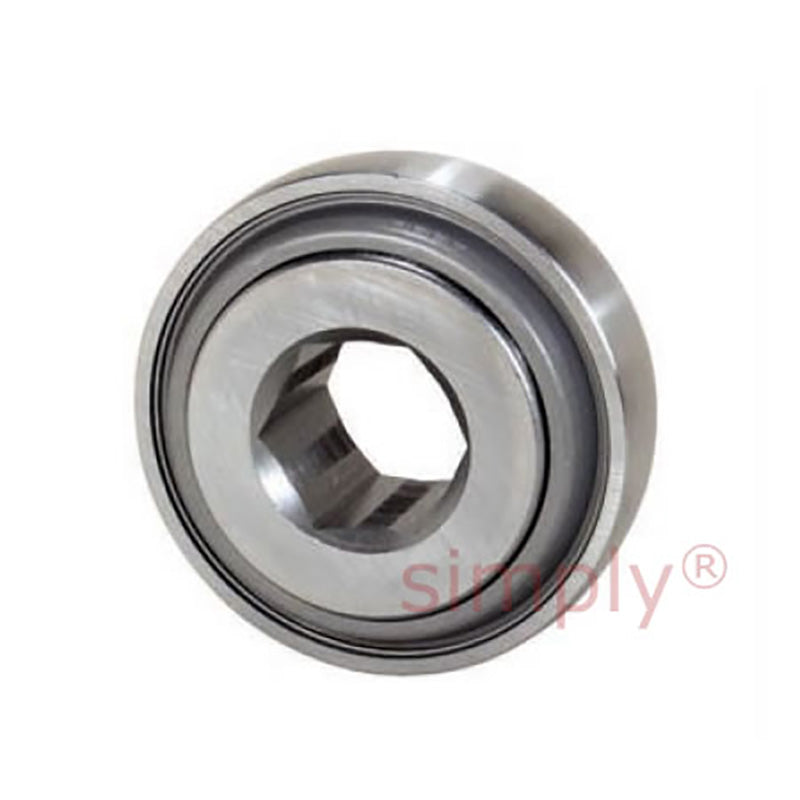

Major Brand 209KRRB2 Feederhouse Hex Bore Bearing 1.5x3.3465x1.1811 inch - Allow 2-3 Days

Combine Bearings
Application conditions and environment: A combine has several different bearing positions, each with similar conditions but having unique challenges;

• Dry, dust-filled environment; several positions have direct crop contact
• Medium to high speed (500 - 2000 min-1)
• Crop wrap and abrasive wear of bearing components
• Shock loads can be common

• Full range of stamped steel and cast iron housings
• Common use of set screws, eccentric lock collars or hex bore bearings

• High contamination feature package with seals matched to the application

• PEER bearing solutions are interchangeable with industry standard designs
• PEER offers one of the industries largest range of high performance combine bearings

Seal Type: G
Typical Application & Speed Limit: Idler Sprockets/Conveyor Rolls - Basic BRG. Size < 205: 3000 RPM , Combine Power Transmission (PT)/Baler Drive Rolls - Basic BRG. Size > 205: 1750 RPM
Typical Environment: Indirect contamination, airborne dust, light/moderate water exposure
Contamination Exclusion: Moderate/High

Brand / Quality:

Major Brand - High Quality

Inside Diameter:

38.12mm = 1.501 inch

Outside Diameter:

85mm = 3.346 inch

Width:

30mm = 1.181 inch
