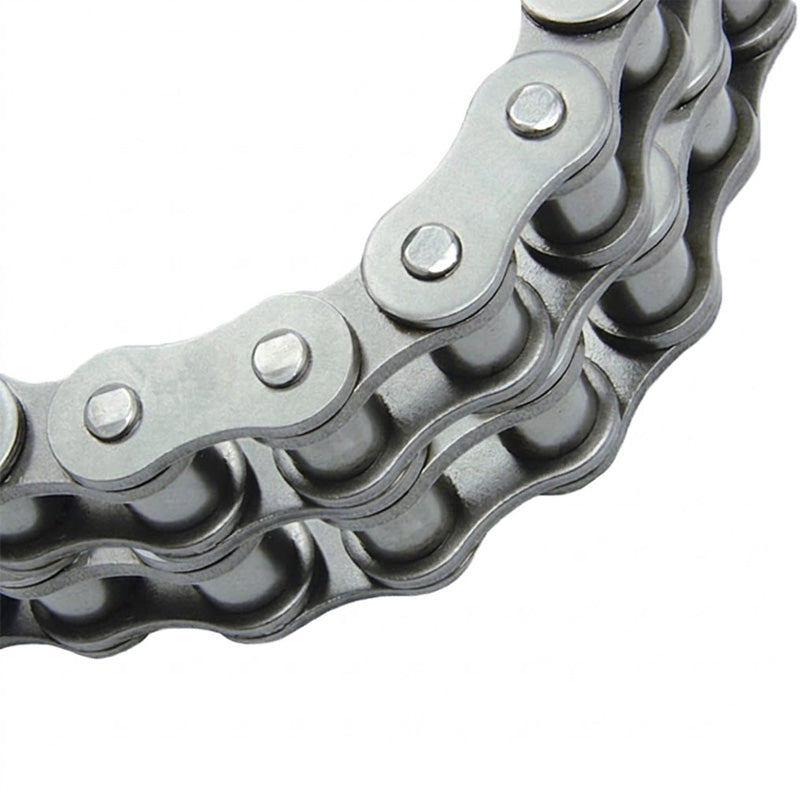

• Branded 20B-2 BS Duplex Roller Chain 1-1/4 inch Pitch 2.5 Metres
1 1

SKU: 20B-2-2.5MTR-MB

Branded 20B-2 BS Duplex Roller Chain 1-1/4 inch Pitch 2.5 Metres

Branded 20B-2 BS Duplex Roller Chain 1-1/4 inch Pitch 2.5 Metres
$143.62 ex VAT
$143.62 ex VAT
Sale Sold out

In stock

Price Break
2+ $96.20
5+ $90.80
10+ $89.72
29+ $88.64
49+ $87.56
75+ $86.47
100+ $81.07
200+ $79.99
250+ $78.91
500+ $77.83
1000+ $75.67

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Pitch:
31.75mm = 1.25 (1-1/4) inch
Technical
Pitch (P) 31.75mm = 1.25 (1-1/4) inch
Roller Diameter (D1 max) 19.05mm
Width between inner plates (B1 min) 19.56mm
Pin dia meter (D2 max) 10.19
mmPin length (L max) 77.8mm
Pin length (Lc max) 81.5mm
Inner plate depth (H2 max) 26.4mm
Plate thickness (T max) 4.5/3.5mm
Ultimate tensile strength (Q min) kN/LB 170.0/38636
Average tensile strength (Q0) kN 211.2
Transverse pitch (Pt) mm 36.45
Weight per meter (q) kg/m 7.2
